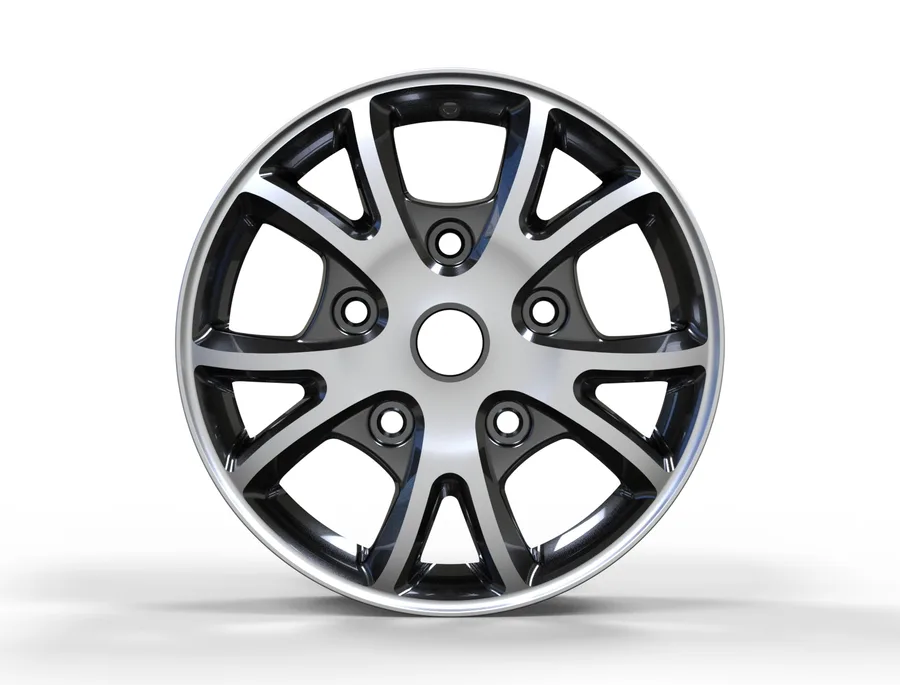

RHX1067 Cast Alloy Wheel
RHX1067 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16 inch: 1 size (16x6.5), 1 bolt pattern (5x160), offset ET 60.5 mm and center bore 65.3 mm. Listed for Ford. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Ford.
Finish
Wheel sizes: 16x6.5
Bolt patterns (PCD): 5x160
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x6.5 | 60.5 | 5x160 | 65.3 | Cone seat | Ford | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x6.5 is a 16 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHX1067 comes in ET 60.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x160 is 5 bolts on a 160 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 65.3 mm for RHX1067. A bore larger than the hub needs centering rings.
