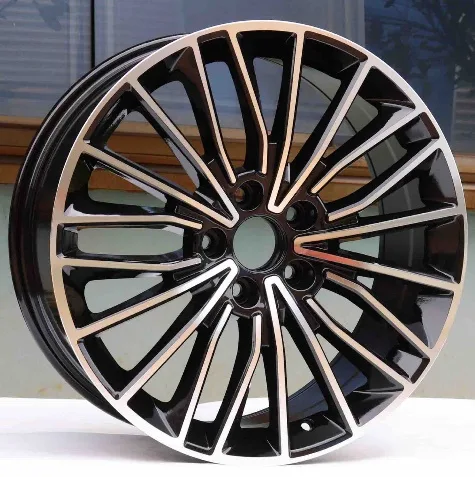

WD173 Cast Alloy Wheel
WD173 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19 inch: 1 size (19x8), 1 bolt pattern (5x120), offset ET 50 mm and center bore 64.1 mm. Listed for BYD (Han). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for BYD.
Finish
Wheel sizes: 19x8
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 19x8 | 50 | 5x120 | 64.1 | Cone seat | BYD Han |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8 is a 19 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD173 comes in ET 50; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD173. A bore larger than the hub needs centering rings.
