WD455 Cast Alloy Wheel

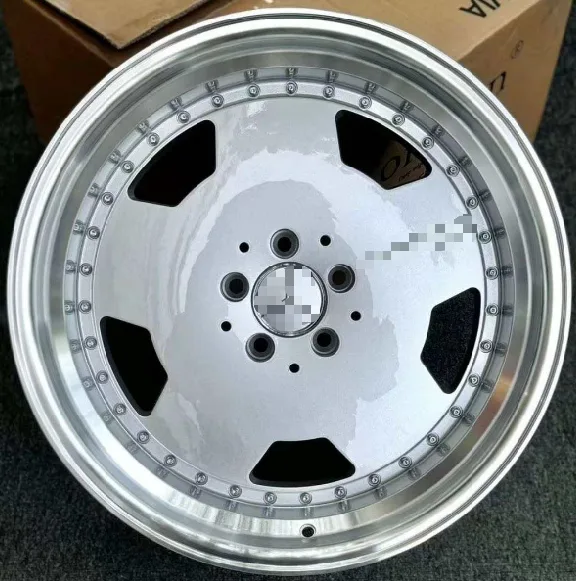

WD455 is a cast alloy wheel (rim) in 1 finish: Silver Machined Lip + Chrome Rivets. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–18 inch: 4 sizes (17x8.5, 17x9.5, 18x8, 18x9), 1 bolt pattern (5x112), offset ET 30–40 mm and center bore 66.6 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x8.5, 17x9.5, 18x8, 18x9
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x8.5 | 30 | 5x112 | 66.6 | Ball seat | Mercedes-Benz | ||
| 17x9.5 | 30 | 5x112 | 66.6 | Ball seat | Mercedes-Benz | 16 | |
| 18x8 | 35 | 5x112 | 66.6 | Ball seat | Mercedes-Benz | 1 | |
| 18x9 | 40 | 5x112 | 66.6 | Ball seat | Mercedes-Benz | 20 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x8.5 is a 17 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD455 comes in ET 30–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.6 mm for WD455. A bore larger than the hub needs centering rings.
