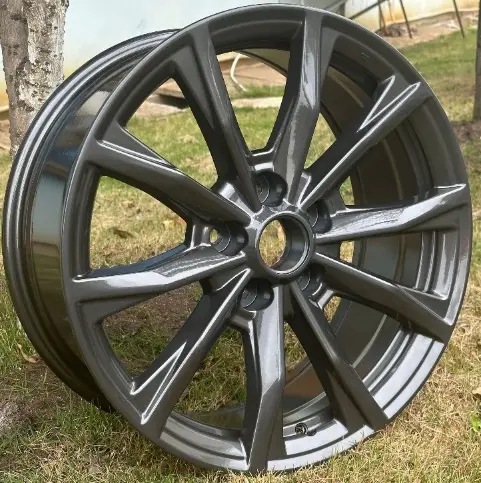

WD274 Cast Alloy Wheel in Gunmetal (Full Paint)
WD274 is a cast alloy wheel (rim) in Gunmetal (Full Paint), one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x7.5), 2 bolt patterns (5x114.3 and 5x120), offset ET 40.5 mm and center bore 64.1 mm. Listed for Honda. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Honda.
Finish
Wheel sizes: 18x7.5
Bolt patterns (PCD): 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x7.5 | 40.5 | 5x114.3 | 64.1 | Flat seat | Honda | 42 | |
| 18x7.5 | 40.5 | 5x120 | 64.1 | Flat seat | Honda | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x7.5 is a 18 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD274 comes in ET 40.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD274. A bore larger than the hub needs centering rings.
