WD159 Cast Alloy Wheel
WD159 is a cast alloy wheel (rim) in 3 finishes: Gloss Black Machined Face, Gloss Black (Full Paint) and Black Chrome Plating. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–19 inch: 2 sizes (18x8, 19x8.5), 2 bolt patterns (5x120 and 5x114.3), offset ET 35–40 mm and center bore 60.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.

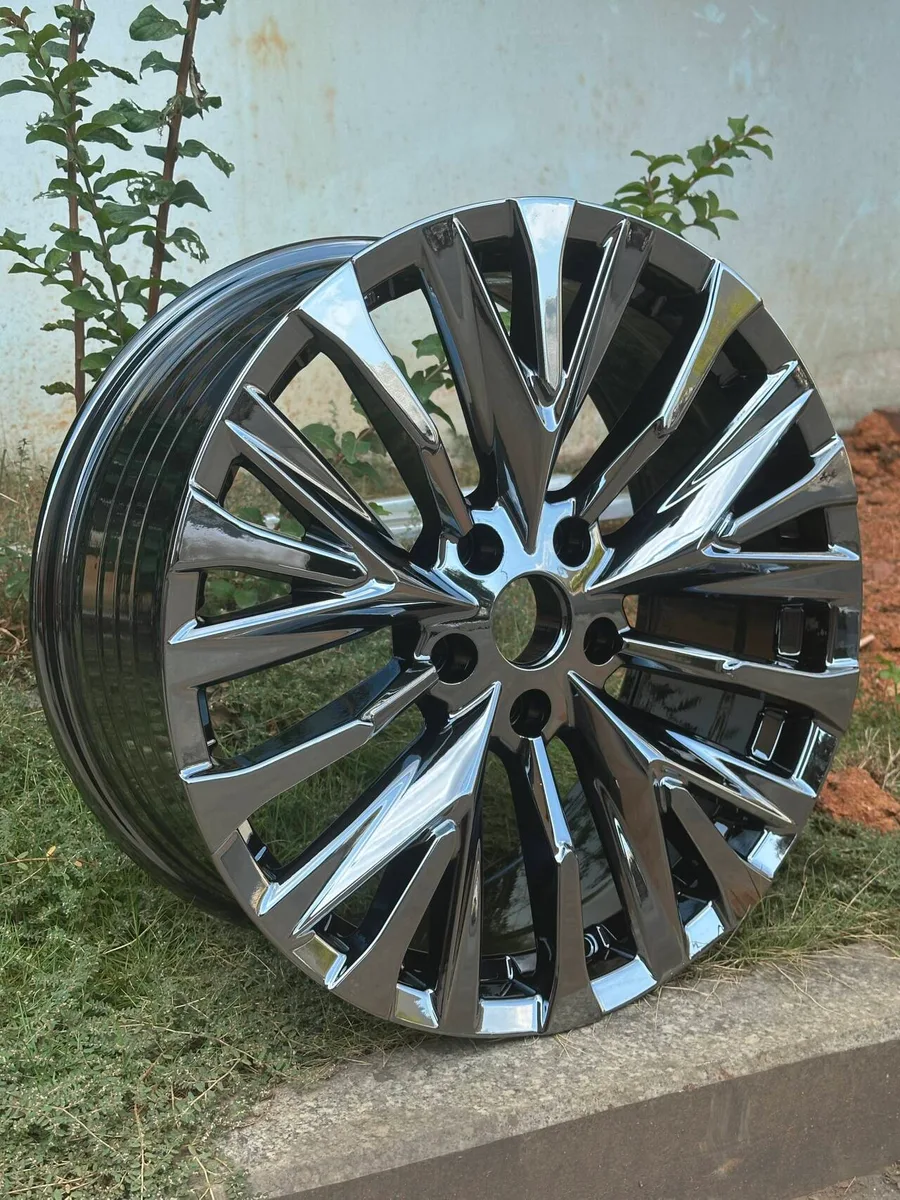

No photo for this finish yet; showing another finish of WD159.
Finish
Wheel sizes: 18x8, 19x8.5
Bolt patterns (PCD): 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x8 | 35 | 5x114.3 | 60.1 | Flat seat | Toyota | 50+ | |
| 18x8 | 35 | 5x120 | 60.1 | Flat seat | Toyota | 50+ | |
| 19x8.5 | 38 | 5x114.3 | 60.1 | Flat seat | Toyota | 50+ | |
| 19x8.5 | 40 | 5x120 | 60.1 | Flat seat | Toyota | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD159 comes in ET 35–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1 mm for WD159. A bore larger than the hub needs centering rings.
Fits the same bolt pattern and size
Same PCD, wheel diameter and a compatible center bore.
Similar finish and range
Same collection, with a matching finish or vehicle brand.
Similar design
Wheels that look alike, from the same collection. Check the bolt pattern before you order.
