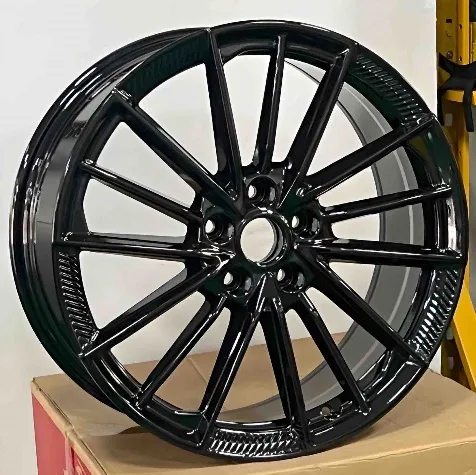

WD246 Cast Alloy Wheel
WD246 is a cast alloy wheel (rim) in 1 finish: Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19 inch: 1 size (19x8), 1 bolt pattern (5x114.3), offset ET 46 mm and center bore 60.1 mm. Listed for Changan (UNI-V). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Changan.
Finish
Wheel sizes: 19x8
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 19x8 | 46 | 5x114.3 | 60.1 | Flat seat | Changan UNI-V | 18 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8 is a 19 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD246 comes in ET 46; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1 mm for WD246. A bore larger than the hub needs centering rings.
