WD342 Cast Alloy Wheel
WD342 is a cast alloy wheel (rim) in 2 finishes: Gloss Black (Full Paint) and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–22 inch: 6 sizes (18x8, 19x8.5, 20x9, 21x9, 22x9.5, 22x10), 1 bolt pattern (5x112), offset ET 26–40 mm and center bore 66.5–66.56 mm. Listed for Audi. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.

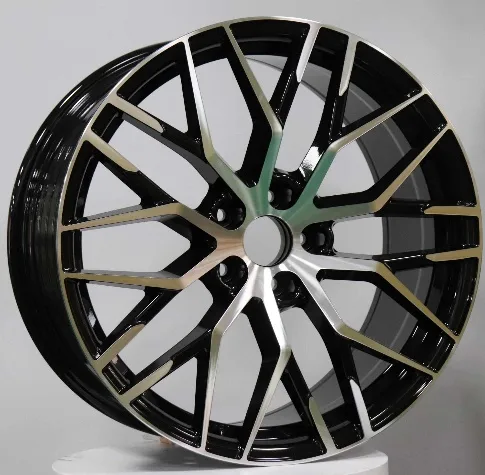

No photo for this finish yet; showing another finish of WD342.
Finish
Wheel sizes: 18x8, 19x8.5, 20x9, 21x9, 22x9.5, 22x10
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x8 | 40 | 5x112 | 66.5 | Ball seat | Audi | ||
| 19x8.5 | 40 | 5x112 | 66.5 | Ball seat | Audi | 3 | |
| 20x9 | 35 | 5x112 | 66.56 | Ball seat | Audi | 2 | |
| 21x9 | 30 | 5x112 | 66.56 | Ball seat | Audi | 1 | |
| 22x9.5 | 26 | 5x112 | 66.56 | Ball seat | Audi | 50+ | |
| 22x10 | 30 | 5x112 | 66.56 | Ball seat | Audi | 5 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD342 comes in ET 26–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–66.56 mm for WD342. A bore larger than the hub needs centering rings.
