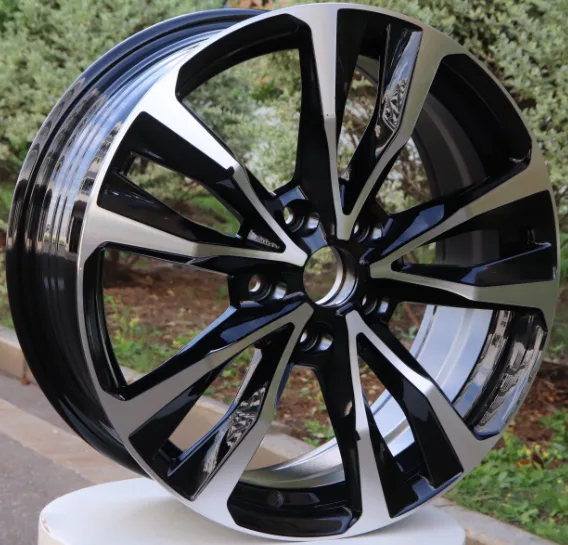

WD415 Cast Alloy Wheel
WD415 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x7), 2 bolt patterns (5x100 and 5x114.3), offset ET 40–45 mm and center bore 54.1–60.1 mm. Listed for Toyota. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 17x7
Bolt patterns (PCD): 5x100, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 40 | 5x100 | 54.1 | Flat seat | Toyota | 50+ | |
| 17x7 | 45 | 5x114.3 | 60.1 | Flat seat | Toyota | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD415 comes in ET 40–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x100 is 5 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 54.1–60.1 mm for WD415. A bore larger than the hub needs centering rings.
Fits the same bolt pattern and size
Same PCD, wheel diameter and a compatible center bore.
Similar finish and range
Same collection, with a matching finish or vehicle brand.
Similar design
Wheels that look alike, from the same collection. Check the bolt pattern before you order.
