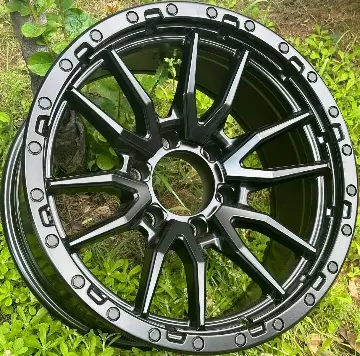

WD165 Cast Alloy Wheel in Matte Black + Milled Rivet Holes
WD165 is a cast alloy wheel (rim) in Matte Black + Milled Rivet Holes, one of 7 finishes. It is an aftermarket design. It comes in 20 inch: 1 size (20x9), 1 bolt pattern (6x139.7), offset ET -12 mm and center bore 110.1 mm. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
White (Full Paint)High-Gloss Black Machined LipGloss Black Machined LipMatte Black (Full Paint)Hyper Black (Full Paint)Gloss Black (Full Paint)Matte Black + Milled Rivet Holes
Wheel sizes: 20x9
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x9 | -12 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x9 is a 20 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD165 comes in ET -12; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 110.1 mm for WD165. A bore larger than the hub needs centering rings.
