WD148 Cast Alloy Wheel in Gloss Black Machined Face
WD148 is a cast alloy wheel (rim) in Gloss Black Machined Face, one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22–23 inch: 4 sizes (22x9.5, 22x10, 23x9.5, 23x10), 1 bolt pattern (5x112), offset ET 20–26 mm and center bore 66.5 mm. Listed for Audi. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.

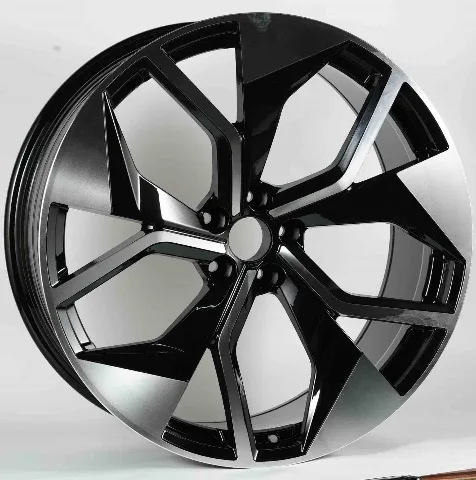

No photo for this finish yet; showing another finish of WD148.
Finish
Wheel sizes: 22x9.5, 22x10, 23x9.5, 23x10
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 22x9.5 | 25 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 22x10 | 20 | 5x112 | 66.5 | Ball seat | Audi | 32 | |
| 23x9.5 | 26 | 5x112 | 66.5 | Ball seat | Audi | 50+ | |
| 23x10 | 20 | 5x112 | 66.5 | Ball seat | Audi | 34 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x9.5 is a 22 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD148 comes in ET 20–26; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5 mm for WD148. A bore larger than the hub needs centering rings.
