WD148 Cast Alloy Wheel

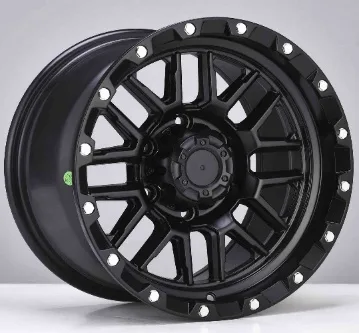

WD148 is a cast alloy wheel (rim) in 3 finishes: Matte Black + Silver Rivets, Gloss Black (Full Paint) and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–23 inch: 6 sizes (16x8, 21x9.5, 22x9.5, 22x10, 23x9.5, 23x10), 2 bolt patterns (5x112 and 6x139.7), offset ET 0–30 mm and center bore 66.5–110.1 mm. Listed for Audi. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.
Finish
Wheel sizes: 16x8
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x8 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x8 is a 16 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD148 comes in ET 0–30; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–110.1 mm for WD148. A bore larger than the hub needs centering rings.
