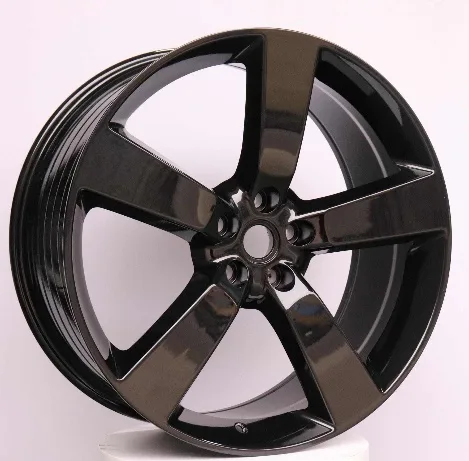

WD319 Cast Alloy Wheel
WD319 is a cast alloy wheel (rim) in 1 finish: Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22 inch: 1 size (22x9.5), 2 bolt patterns (5x108 and 5x120), offset ET 45 mm and center bore 63.4–72.6 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
Finish
Wheel sizes: 22x9.5
Bolt patterns (PCD): 5x108, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 22x9.5 | 45 | 5x108 | 63.4 | Cone seat | Land Rover | 50+ | |
| 22x9.5 | 45 | 5x120 | 72.6 | Flat seat | Land Rover | 1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x9.5 is a 22 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD319 comes in ET 45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4–72.6 mm for WD319. A bore larger than the hub needs centering rings.
