WD124 Cast Alloy Wheel in Gloss Black (Full Paint)
WD124 is a cast alloy wheel (rim) in Gloss Black (Full Paint), one of 4 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–20 inch: 4 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5), 2 bolt patterns (5x112 and 5x120), offset ET 35–42 mm and center bore 66.6–72.6 mm. Listed for BMW. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for BMW.

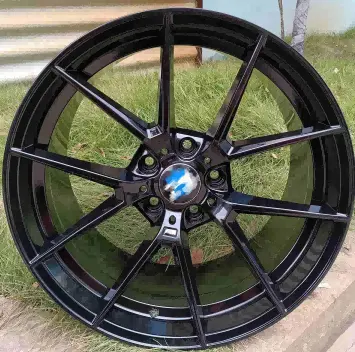

No photo for this finish yet; showing another finish of WD124.
Finish
Matte Black + Milled Spokes and Rivet HolesGloss Black Machined FaceMatte Black (Full Paint)Gloss Black (Full Paint)
Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5
Bolt patterns (PCD): 5x120, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 19x8.5 | 35 | 5x120 | 72.6 | Cone seat | BMW | 0 | |
| 19x9.5 | 38 | 5x120 | 72.6 | Cone seat | BMW | 1 | |
| 20x8.5 | 38 | 5x112 | 66.6 | Cone seat | BMW | 4 | |
| 20x9.5 | 42 | 5x112 | 66.6 | Cone seat | BMW | 8 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD124 comes in ET 35–42; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.6–72.6 mm for WD124. A bore larger than the hub needs centering rings.
