WD251 Cast Alloy Wheel

Name: WD251 Alloy Wheel
Brand: Sky Flux
SKU: WD251

WD251 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Matte Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–20 inch: 4 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5), 2 bolt patterns (5x112 and 5x120), offset ET 26–42 mm and center bore 66.56–72.6 mm. Listed for BMW. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for BMW.

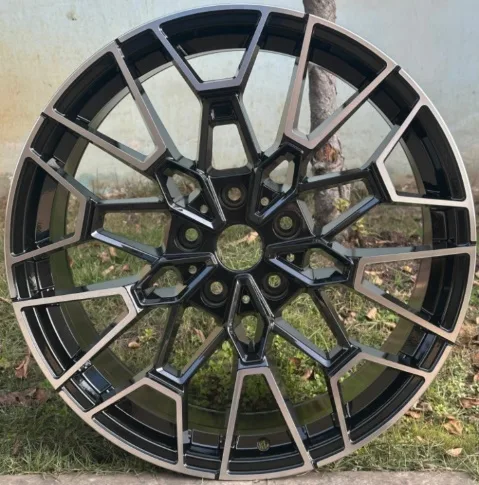

WD251 alloy wheel rim – Gloss Black Machined Face

WD251 alloy wheel – Gloss Black Machined Face, photo 2

Finish

Gloss Black Machined Face Matte Black (Full Paint)

Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5

Bolt patterns (PCD): 5x112, 5x120

Sizes and specifications of WD251 in Gloss Black Machined Face
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Hole type	Fits	Stock
19x8.5	26	5x112	66.56	Cone seat	BMW	50+
19x8.5	37	5x120	72.6	Cone seat	BMW	50+
19x9.5	37	5x112	66.56	Cone seat	BMW	50+
19x9.5	42	5x120	72.6	Cone seat	BMW	50+
20x8.5	26	5x112	66.56	Cone seat	BMW	1
20x8.5	37	5x120	72.6	Cone seat	BMW	50+
20x9.5	37	5x112	66.56	Cone seat	BMW	28
20x9.5	42	5x120	72.6	Cone seat	BMW	50+

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD251 comes in ET 26–42; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.56–72.6 mm for WD251. A bore larger than the hub needs centering rings.
