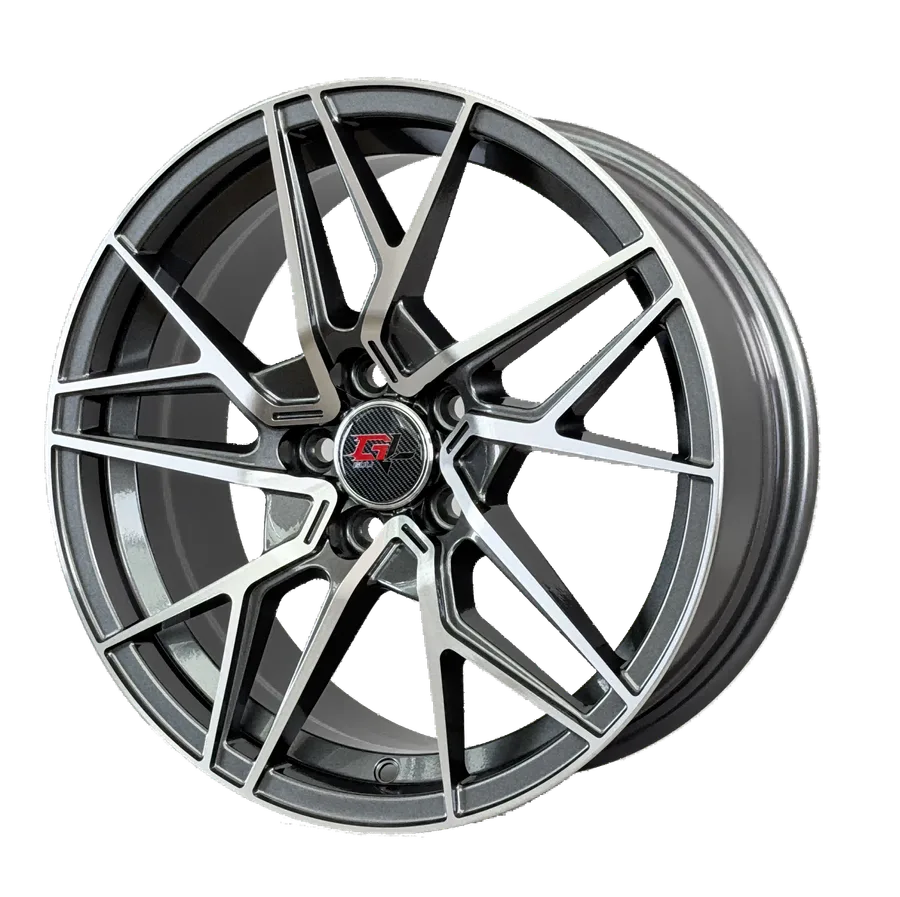

WD105 Cast Alloy Wheel in Gunmetal Machined Face
WD105 is a cast alloy wheel (rim) in Gunmetal Machined Face, one of 2 finishes. It is an aftermarket design. It comes in 16 inch: 1 size (16x7), 2 bolt patterns (5x100 and 5x112), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 16x7
Bolt patterns (PCD): 5x100, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 16x7 | 35 | 5x100 | 73.1 | 1 | |
| 16x7 | 35 | 5x112 | 66.45 | 14 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD105 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x100 is 5 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD105. A bore larger than the hub needs centering rings.
