WD035 Cast Alloy Wheel

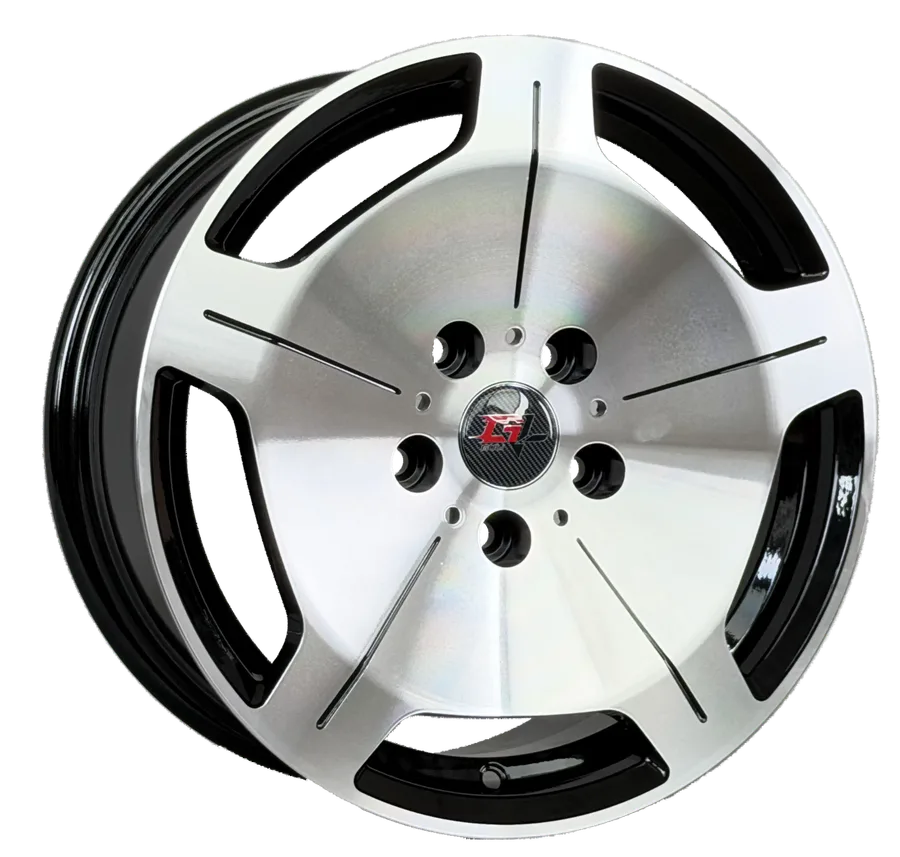

WD035 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–20 inch: 7 sizes (16x7, 17x7.5, 18x8, 19x8.5, 19x9.5, 20x8.5 and more), 4 bolt patterns (5x112, 4x100, 5x100 and 5x114.3), offset ET 35–43.5 mm and center bore 66.45–73.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 16x7, 17x7.5, 18x8, 19x8.5, 19x9.5, 20x8.5, 20x9.5
Bolt patterns (PCD): 4x100, 5x100, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x7 | 35 | 4x100 | 67.1 | 2 | |||
| 16x7 | 35 | 5x100 | 73.1 | 8 | |||
| 16x7 | 35 | 5x112 | 66.45 | 2 | |||
| 16x7 | 35 | 5x114.3 | 73.1 | 50+ | |||
| 17x7.5 | 35 | 5x112 | 66.5 | Ball seat | Mercedes-Benz | 50+ | |
| 18x8 | 35 | 5x112 | 66.5 | Ball seat | Mercedes-Benz | 50+ | |
| 19x8.5 | 35 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 50+ | |
| 19x9.5 | 43 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 50+ | |
| 20x8.5 | 36 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 13 | |
| 20x9.5 | 43.5 | 5x112 | 66.56 | Ball seat | Mercedes-Benz | 32 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD035 comes in ET 35–43.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD035. A bore larger than the hub needs centering rings.
