WD0628 Forged Alloy Wheel in Gloss Black (Full Paint)
WD0628 is a forged alloy wheel (rim) in Gloss Black (Full Paint), one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22 inch: 1 size (22x9.5), 1 bolt pattern (5x120), offset ET 35 mm and center bore 62.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

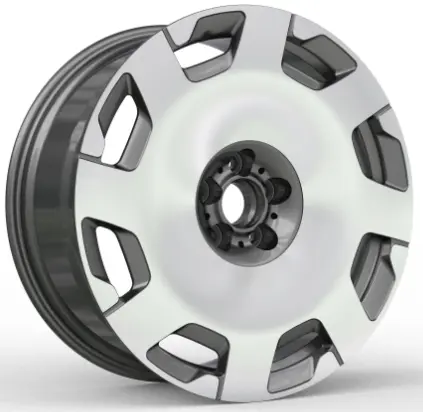

No photo for this finish yet; showing another finish of WD0628.
Finish
Wheel sizes: 22x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 22x9.5 | 35 | 5x120 | 62.5 | 7 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x9.5 is a 22 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0628 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5 mm for WD0628. A bore larger than the hub needs centering rings.
