CO6243 Forged Alloy Wheel

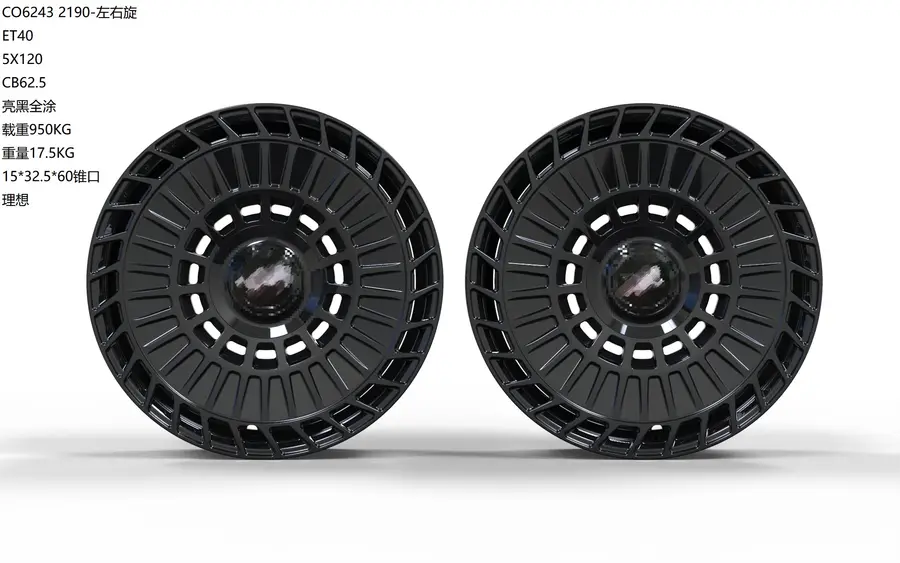

CO6243 is a forged alloy wheel (rim) in 1 finish: Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21–22 inch: 3 sizes (21x9, 22x9, 22x9.5), 1 bolt pattern (5x120), offset ET 40 mm and center bore 62.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 21x9, 22x9, 22x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 21x9 | 40 | 5x120 | 62.5 | 2 | |
| 22x9 | 40 | 5x120 | 62.5 | 0 | |
| 22x9.5 | 40 | 5x120 | 62.5 | 1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x9 is a 21 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. CO6243 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5 mm for CO6243. A bore larger than the hub needs centering rings.
