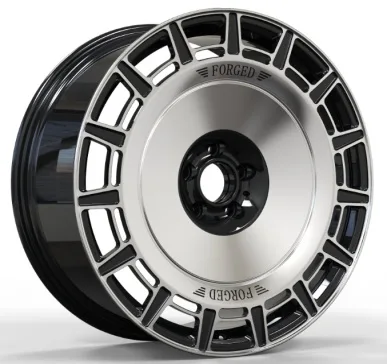

WD0480 Forged Alloy Wheel
WD0480 is a forged alloy wheel (rim) in 5 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–23 inch: 6 sizes (20x8.5, 20x9, 21x9, 21x9.5, 22x9.5, 23x9.5), 1 bolt pattern (5x120), offset ET 30–38 mm and center bore 62.5–72.56 mm. Listed for Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
No photo for this finish yet; showing another finish of WD0480.
Finish
Wheel sizes: 20x8.5, 20x9, 21x9, 21x9.5, 22x9.5, 23x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 30 | 5x120 | 66.1 | 13 | ||||||
| 20x9 | 30 | 5x120 | 66.1 | 4 | ||||||
| 21x9 | 35 | 5x120 | 66.1 | Cone seat | 15*32.5*60 | 1100 | 15.4 | 9 | ||
| 21x9.5 | 38 | 5x120 | 72.56 | Cone seat | 15*32.5*60 | 1100 | 15.6 | Land Rover | 5 | |
| 21x9.5 | 38 | 5x120 | 66.1 | 15*32.5*60 | 1100 | 15.6 | 3 | |||
| 22x9.5 | 38 | 5x120 | 72.56 | Cone seat | 15*32.5*60 | 1100 | 16.3 | Land Rover | 15 | |
| 23x9.5 | 38 | 5x120 | 72.56 | Cone seat | 15*32.5*60 | 1100 | 17.6 | Land Rover | 12 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0480 comes in ET 30–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 62.5–72.56 mm for WD0480. A bore larger than the hub needs centering rings.
