WD0568 Forged Alloy Wheel

Name: WD0568 Alloy Wheel
Brand: Sky Flux
SKU: WD0568

WD0568 is a forged alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 5 sizes (20x8.5, 21x10, 21x11, 22x10, 22x11), 1 bolt pattern (5x112), offset ET 35–47 mm and center bore 66.45 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.

More wheels for Mercedes-Benz.

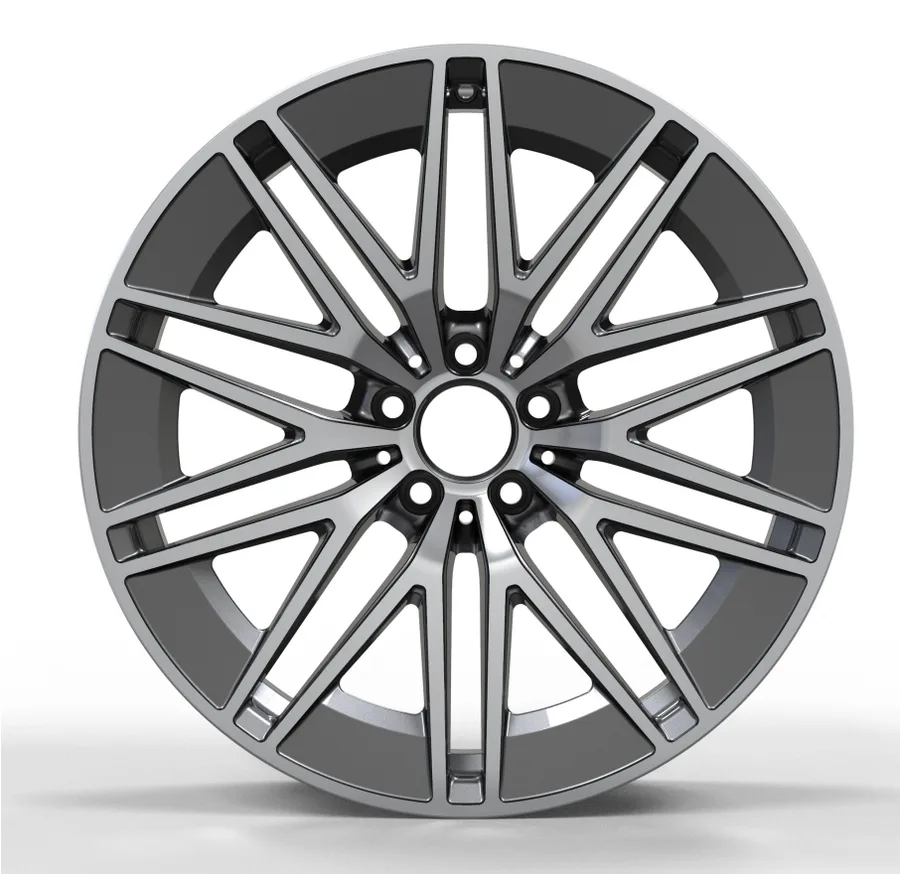

WD0568 alloy wheel rim – Gloss Black Machined Face

No photo for this finish yet; showing another finish of WD0568.

Finish

Gloss Black Machined Face Gunmetal Machined Face

Wheel sizes: 20x8.5, 21x10, 21x11, 22x10, 22x11

Bolt patterns (PCD): 5x112

Sizes and specifications of WD0568 in Gloss Black Machined Face
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Lug hole (mm)	Load (kg)	Fits	Stock
20x8.5	35	5x112	66.45	1631R14.1L	950	Mercedes-Benz	8
21x10	43	5x112	66.45	1631R14.1L	950	Mercedes-Benz	6
21x11	42	5x112	66.45	1631R14.1L	950	Mercedes-Benz	6
22x10	43	5x112	66.45	1631R14.1L	950	Mercedes-Benz	8
22x11	47	5x112	66.45	1631R14.1L	950	Mercedes-Benz	8

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD0568 comes in ET 35–47; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.45 mm for WD0568. A bore larger than the hub needs centering rings.
