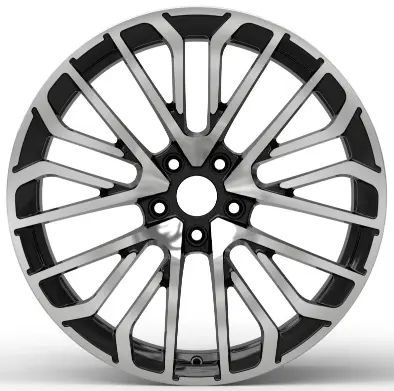

WD0597 Forged Alloy Wheel
WD0597 is a forged alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–22 inch: 5 sizes (19x8.5, 20x9, 21x9.5, 22x1, 22x10), 1 bolt pattern (5x112), offset ET 28–32 mm and center bore 66.45 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 19x8.5, 20x9, 21x9.5, 22x1, 22x10
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 19x8.5 | 30 | 5x112 | 66.45 | 950 | 12.1 | 4 | |
| 20x9 | 28 | 5x112 | 66.45 | 950 | 13.7 | 16 | |
| 21x9.5 | 32 | 5x112 | 66.45 | 950 | 15.4 | ||
| 22x1 | 28 | 5x112 | 66.45 | 4 | |||
| 22x10 | 28 | 5x112 | 66.45 | 950 | 16.8 | 8 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0597 comes in ET 28–32; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45 mm for WD0597. A bore larger than the hub needs centering rings.
