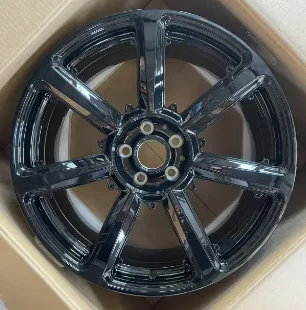

WD0475 Forged Alloy Wheel
WD0475 is a forged alloy wheel (rim) in 6 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–23 inch: 11 sizes (19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x9, 21x10 and more), 1 bolt pattern (5x112), offset ET 34–47 mm and center bore 66.45 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
No photo for this finish yet; showing another finish of WD0475.
Finish
Gloss Black Machined Face + Bronze Clear Coat + InsertsGloss Black (Full Paint) + InsertsGloss Black (Full Paint)Gloss Black Machined Face BronzeGloss Black Machined Face + InsertsGloss Black Machined Face
Wheel sizes: 19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x9, 21x10, 21x11, 22x10, 22x11, 23x10, 23x11
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 19x8.5 | 36 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 11.5 | Mercedes-Benz | 7 | |
| 19x9.5 | 43.5 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 11.8 | Mercedes-Benz | 3 | |
| 20x8.5 | 36 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 12.5 | Mercedes-Benz | 7 | |
| 20x9.5 | 43.5 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 13 | Mercedes-Benz | 8 | |
| 21x9 | 34 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 13 | Mercedes-Benz | 11 | |
| 21x10 | 43 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 13.5 | Mercedes-Benz | 7 | |
| 21x11 | 42 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 14.4 | Mercedes-Benz | 4 | |
| 22x10 | 43 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 16 | Mercedes-Benz | 19 | |
| 22x11 | 47 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 16.6 | Mercedes-Benz | 15 | |
| 23x10 | 43 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 17 | Mercedes-Benz | 17 | |
| 23x11 | 47 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 17.8 | Mercedes-Benz | 9 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0475 comes in ET 34–47; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45 mm for WD0475. A bore larger than the hub needs centering rings.
