WD0520 Forged Alloy Wheel

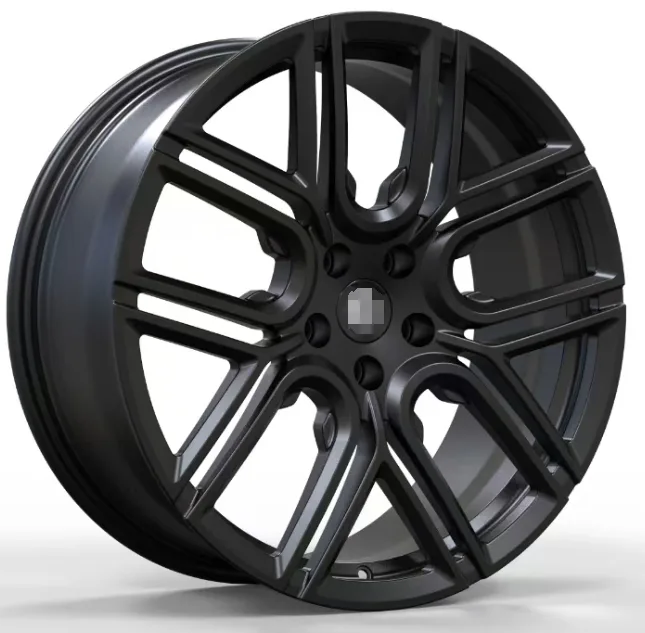

WD0520 is a forged alloy wheel (rim) in 4 finishes: Matte Black (Full Paint), Matte Bronze, Matte Gunmetal (Full Paint) and Matte Black. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–21 inch: 7 sizes (19x8.5, 19x9, 20x8.5, 20x9, 21x8.5, 21x9.5 and more), 1 bolt pattern (5x114.3), offset ET 35–42 mm and center bore 64.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
No photo for this finish yet; showing another finish of WD0520.
Finish
Wheel sizes: 19x8.5, 19x9, 20x8.5, 20x9, 21x8.5, 21x9.5, 21x11
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Load (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 19x8.5 | 35 | 5x114.3 | 64.5 | 850 | 16 | |
| 19x9 | 35 | 5x114.3 | 64.5 | 8 | ||
| 20x8.5 | 35 | 5x114.3 | 64.5 | 850 | 7 | |
| 20x9 | 40 | 5x114.3 | 64.5 | 850 | 6 | |
| 21x8.5 | 35 | 5x114.3 | 64.5 | 850 | 8 | |
| 21x9.5 | 38 | 5x114.3 | 64.5 | 850 | 8 | |
| 21x11 | 42 | 5x114.3 | 64.5 | 850 | 6 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0520 comes in ET 35–42; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.5 mm for WD0520. A bore larger than the hub needs centering rings.
