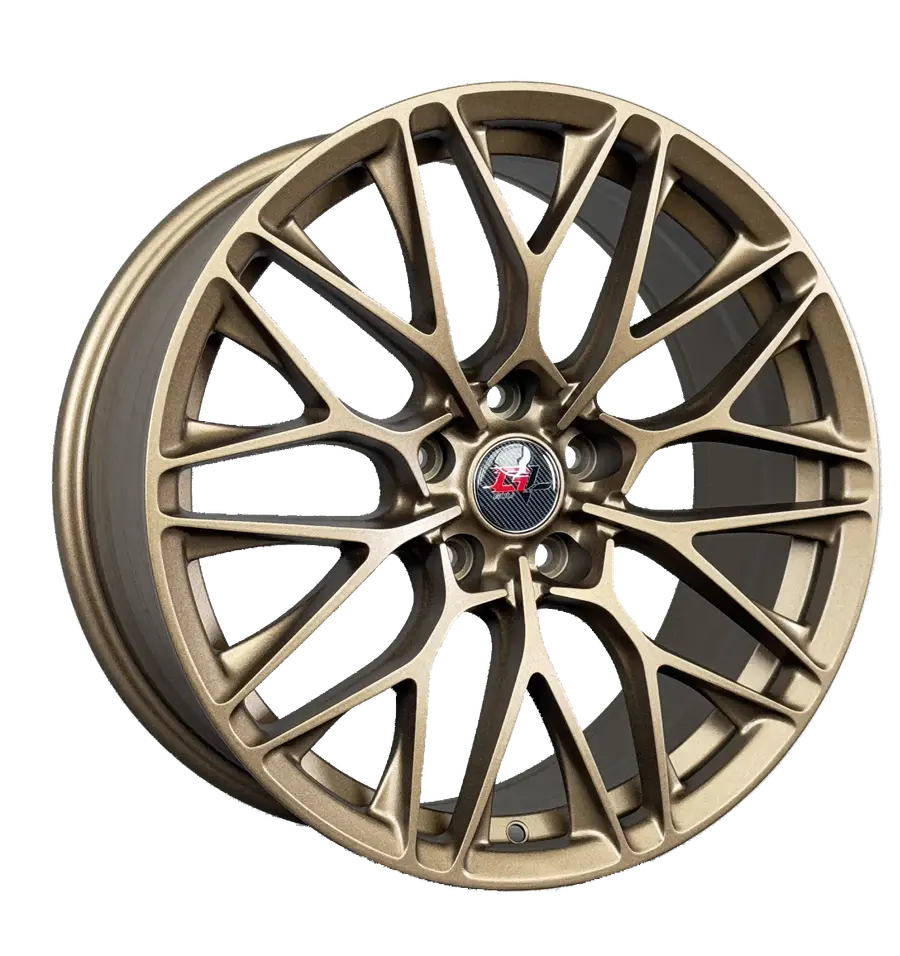

WD039 Cast Alloy Wheel in Matte Bronze (Full Paint)
WD039 is a cast alloy wheel (rim) in Matte Bronze (Full Paint), one of 3 finishes. It is an aftermarket design. It comes in 18–19 inch: 2 sizes (18x8, 19x8.5), 3 bolt patterns (5x108, 5x112 and 5x114.3), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x8, 19x8.5
Bolt patterns (PCD): 5x108, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 18x8 | 35 | 5x108 | 73.1 | 8 | |
| 18x8 | 35 | 5x112 | 66.45 | 3 | |
| 18x8 | 35 | 5x114.3 | 73.1 | 16 | |
| 19x8.5 | 35 | 5x108 | 73.1 | 32 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 3 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 7 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD039 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD039. A bore larger than the hub needs centering rings.
