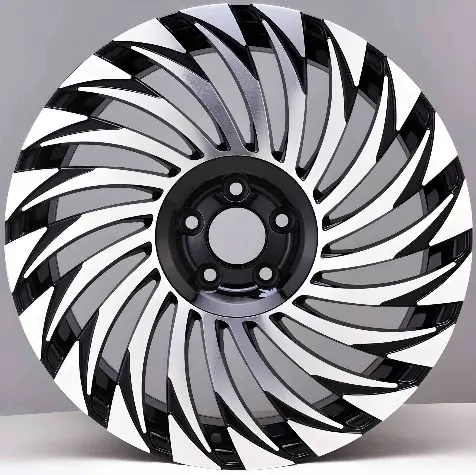

WD027 Cast Alloy Wheel
WD027 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 16–18 inch: 3 sizes (16x7, 17x7.5, 18x8), 3 bolt patterns (5x112, 4x114.3 and 5x108), offset ET 30–35 mm and center bore 66.5–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 16x7, 17x7.5, 18x8
Bolt patterns (PCD): 4x114.3, 5x112, 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 16x7 | 30 | 4x114.3 | 73.1 | Cone seat | 1 | |
| 16x7 | 30 | 5x112 | 66.5 | Ball seat | 50+ | |
| 17x7.5 | 30 | 5x108 | 73.1 | Cone seat | 1 | |
| 18x8 | 35 | 5x112 | 66.5 | Ball seat | 5 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD027 comes in ET 30–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–73.1 mm for WD027. A bore larger than the hub needs centering rings.
