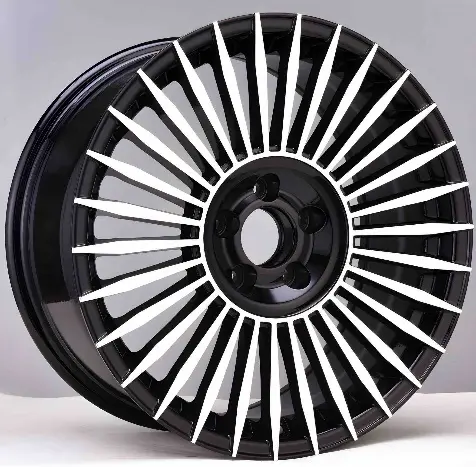

FBX427 Cast Alloy Wheel

Name: FBX427 Alloy Wheel
Brand: Sky Flux
SKU: FBX427

FBX427 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 17–20 inch: 4 sizes (17x7.5, 18x8, 19x8.5, 20x8.5), 4 bolt patterns (5x108, 5x112, 5x114.3 and 5x120), offset ET 33–35 mm and center bore 66.5–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

Finish

Gloss Black Machined Face

Wheel sizes: 17x7.5, 18x8, 19x8.5, 20x8.5

Bolt patterns (PCD): 5x108, 5x112, 5x114.3, 5x120

Sizes and specifications of FBX427 in Gloss Black Machined Face
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Hole type	Stock
17x7.5	33	5x108	73.1	Cone seat	50+
17x7.5	35	5x112	66.5	Ball seat	50+
17x7.5	35	5x114.3	73.1	Cone seat
18x8	35	5x108	73.1	Cone seat	50+
18x8	35	5x112	66.5	Ball seat
18x8	35	5x114.3	73.1	Cone seat	48
18x8	35	5x120	72.6	Cone seat	50+
19x8.5	35	5x108	73.1	Cone seat	50+
19x8.5	35	5x112	66.5	Ball seat	50+
19x8.5	35	5x114.3	73.1	Cone seat	50+
19x8.5	35	5x120	72.6	Cone seat	43
20x8.5	35	5x108	73.1	Cone seat	50+
20x8.5	35	5x112	66.5	Ball seat	27
20x8.5	35	5x114.3	73.1	Cone seat	50+
20x8.5	35	5x120	72.6	Cone seat	1

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. FBX427 comes in ET 33–35; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.5–73.1 mm for FBX427. A bore larger than the hub needs centering rings.
