WD227 Cast Alloy Wheel
WD227 is a cast alloy wheel (rim) in 4 finishes: Gloss Black + Milled Window + Red Clear Coat, Gloss Black + Milled Window, Gloss Black (Full Paint) and Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–20 inch: 4 sizes (16x8.5, 20x8.5, 20x9, 20x9.5), 2 bolt patterns (6x139.7 and 5x112), offset ET 0–43.5 mm and center bore 66.56–110.1 mm. Listed for Mercedes-Benz. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.

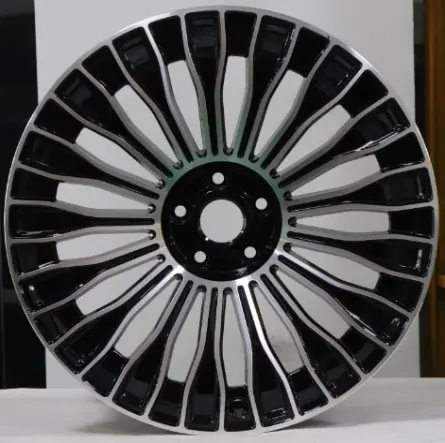

No photo for this finish yet; showing another finish of WD227.
Finish
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x8.5 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 3 | |
| 20x9 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 1 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x8.5 is a 16 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD227 comes in ET 0–43.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.56–110.1 mm for WD227. A bore larger than the hub needs centering rings.
