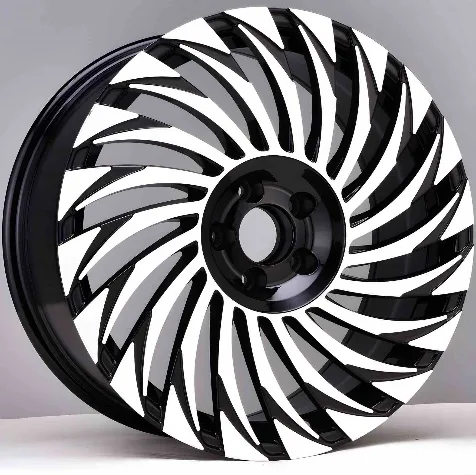

FBX493 Cast Alloy Wheel
FBX493 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 17–19 inch: 3 sizes (17x7.5, 18x8, 19x8.5), 3 bolt patterns (5x108, 5x112 and 5x114.3), offset ET 33–35 mm and center bore 66.5–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x7.5, 18x8, 19x8.5
Bolt patterns (PCD): 5x108, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 17x7.5 | 33 | 5x108 | 73.1 | Cone seat | 50+ | |
| 17x7.5 | 35 | 5x112 | 66.5 | Ball seat | 46 | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | Cone seat | 50+ | |
| 18x8 | 35 | 5x108 | 73.1 | Cone seat | 50+ | |
| 18x8 | 35 | 5x112 | 66.5 | Cone seat | 50+ | |
| 18x8 | 35 | 5x114.3 | 73.1 | Cone seat | 50+ | |
| 19x8.5 | 35 | 5x108 | 73.1 | Cone seat | 50+ | |
| 19x8.5 | 35 | 5x112 | 66.5 | Ball seat | 50+ | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | Cone seat | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FBX493 comes in ET 33–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–73.1 mm for FBX493. A bore larger than the hub needs centering rings.
