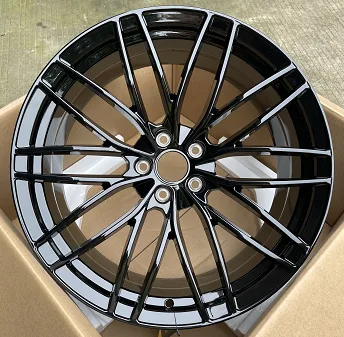

WD0053 Forged Alloy Wheel in Gloss Black Over Red Clear Coat
WD0053 is a forged alloy wheel (rim) in Gloss Black Over Red Clear Coat, one of 4 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–21 inch: 4 sizes (18x8, 19x8.5, 20x9, 21x9.5), 1 bolt pattern (5x112), offset ET 28–35 mm and center bore 66.6 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Gloss Black (Full Paint)Gloss Black + Red Inner LipGloss Black Over Red Clear CoatMatte Gunmetal (Full Paint)
Wheel sizes: 18x8, 19x8.5, 20x9, 21x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 18x8 | 35 | 5x112 | 66.6 | 0 | ||||
| 19x8.5 | 28 | 5x112 | 66.6 | 0 | ||||
| 20x9 | 30 | 5x112 | 66.6 | 0 | ||||
| 21x9.5 | 28 | 5x112 | 66.6 | 4 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0053 comes in ET 28–35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.6 mm for WD0053. A bore larger than the hub needs centering rings.
