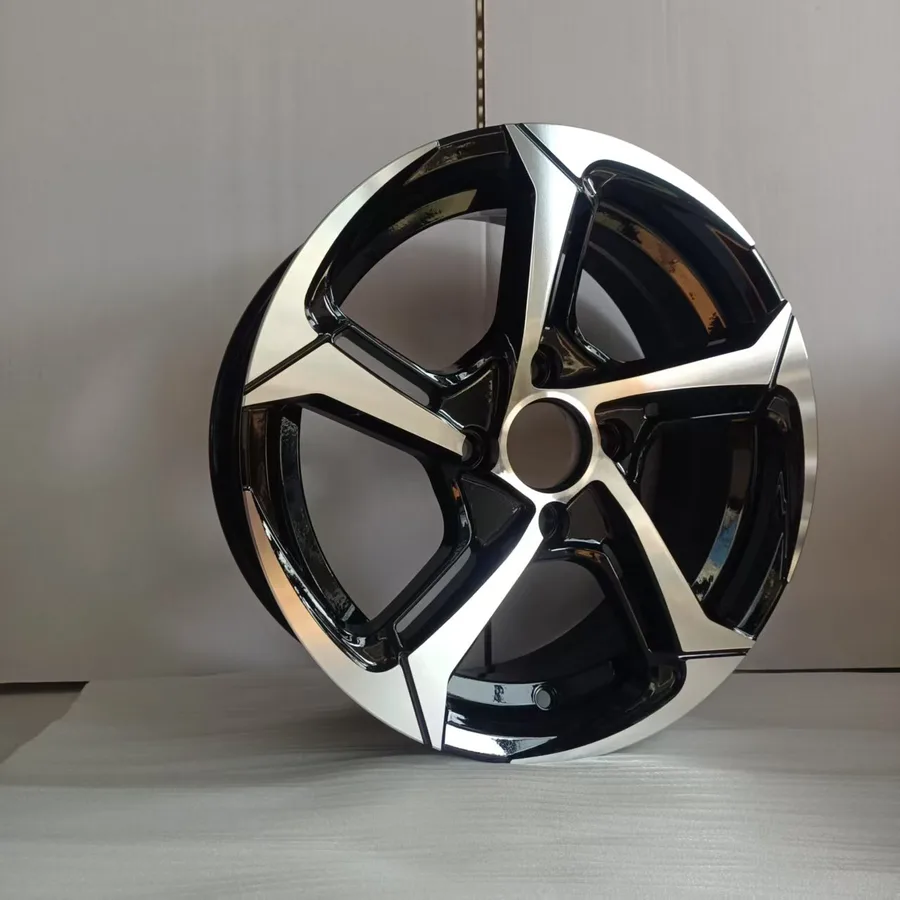

RHD1025 Cast Alloy Wheel
RHD1025 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 14 inch: 1 size (14x5.5), 2 bolt patterns (4x100 and 5x100), offset ET 30 mm and center bore 57.1–67.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5.5
Bolt patterns (PCD): 4x100, 5x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 14x5.5 | 30 | 4x100 | 67.1 | Cone seat | 3 | |
| 14x5.5 | 30 | 5x100 | 57.1 | Ball seat | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHD1025 comes in ET 30; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–67.1 mm for RHD1025. A bore larger than the hub needs centering rings.
