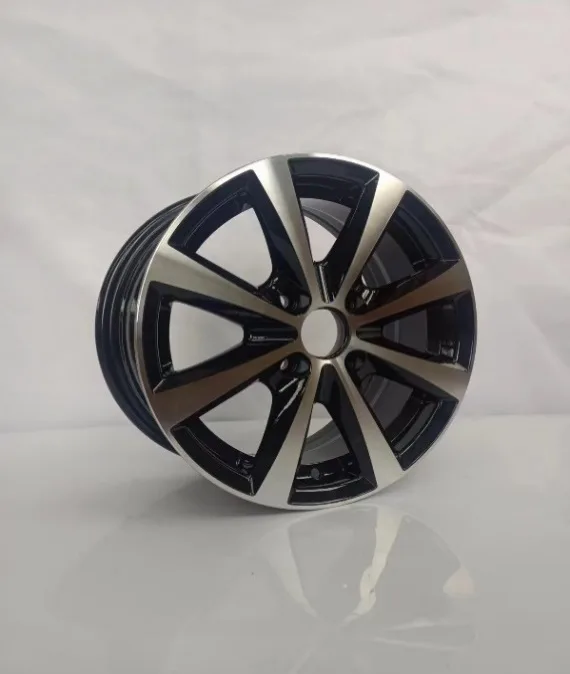

RH1015 Cast Alloy Wheel
RH1015 is a cast alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an aftermarket design. It comes in 13–14 inch: 2 sizes (13x5.5, 14x6), 2 bolt patterns (4x100 and 4x114.3), offset ET 35 mm and center bore 67.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 13x5.5, 14x6
Bolt patterns (PCD): 4x100, 4x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 13x5.5 | 35 | 4x100 | 67.1 | Cone seat | 0 | |
| 13x5.5 | 35 | 4x114.3 | 73.1 | Cone seat | 3 | |
| 14x6 | 35 | 4x100 | 67.1 | Cone seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 13x5.5 is a 13 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RH1015 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 67.1–73.1 mm for RH1015. A bore larger than the hub needs centering rings.
