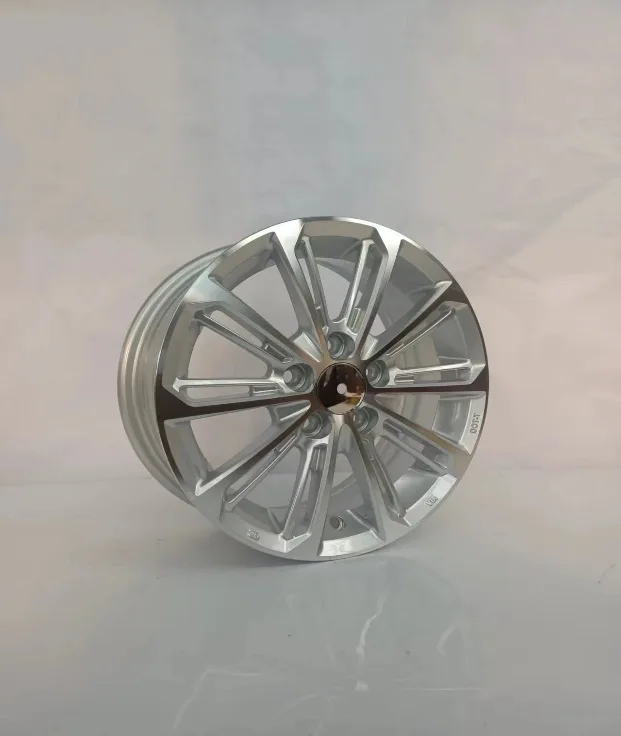

RHD1006 Cast Alloy Wheel
RHD1006 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Silver Machined Face. It is an aftermarket design. It comes in 14 inch: 1 size (14x5.5), 1 bolt pattern (5x100), offset ET 38 mm and center bore 57.1 mm. Listed for Volkswagen. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Volkswagen.
No photo for this finish yet; showing another finish of RHD1006.
Finish
Wheel sizes: 14x5.5
Bolt patterns (PCD): 5x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 14x5.5 | 38 | 5x100 | 57.1 | Ball seat | Volkswagen | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHD1006 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x100 is 5 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1 mm for RHD1006. A bore larger than the hub needs centering rings.
