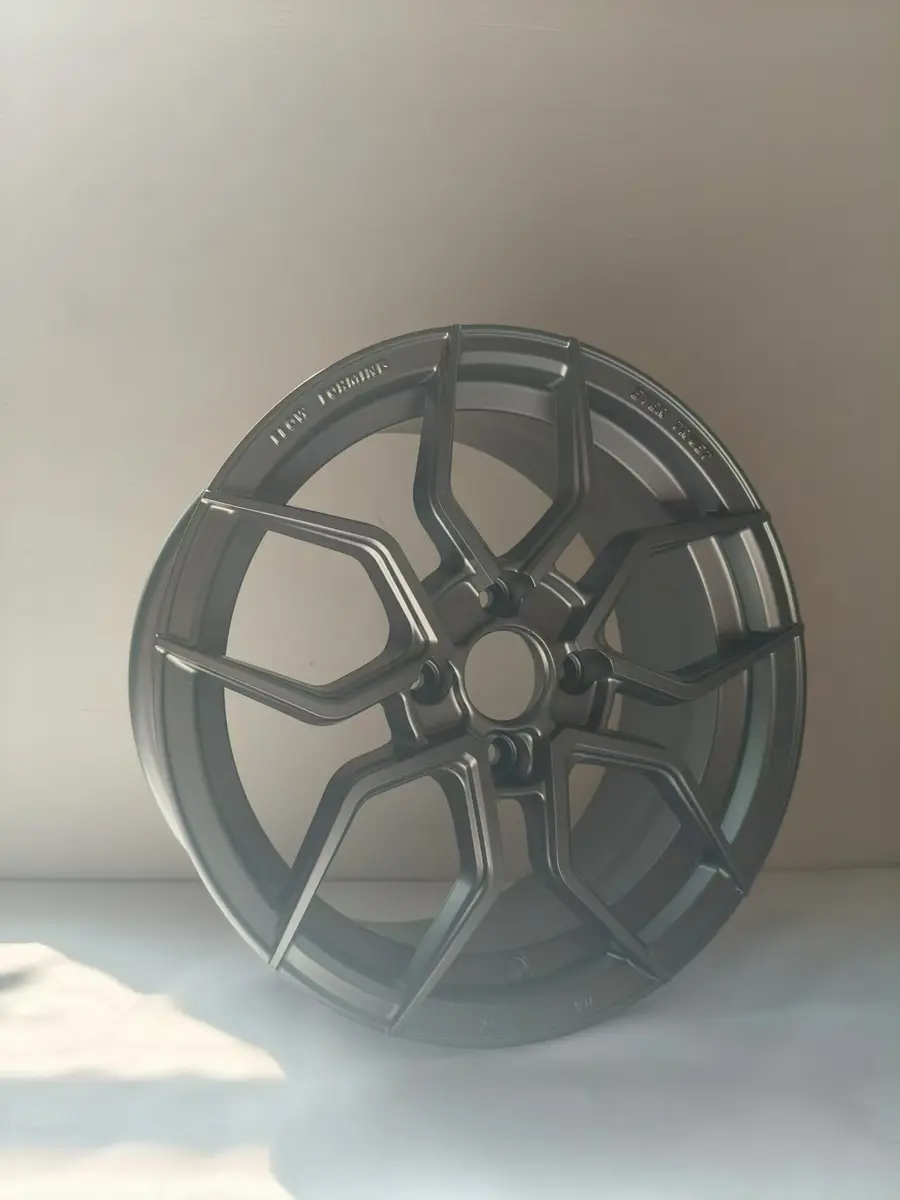

RHX1024 Cast Alloy Wheel
RHX1024 is a cast alloy wheel (rim) in 1 finish: Semi-Matte Gunmetal (Full Paint). It is an aftermarket design. It comes in 15 inch: 1 size (15x7), 1 bolt pattern (4x100), offset ET 40 mm and center bore 73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 15x7
Bolt patterns (PCD): 4x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 15x7 | 40 | 4x100 | 73.1 | Cone seat | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 15x7 is a 15 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHX1024 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 73.1 mm for RHX1024. A bore larger than the hub needs centering rings.
