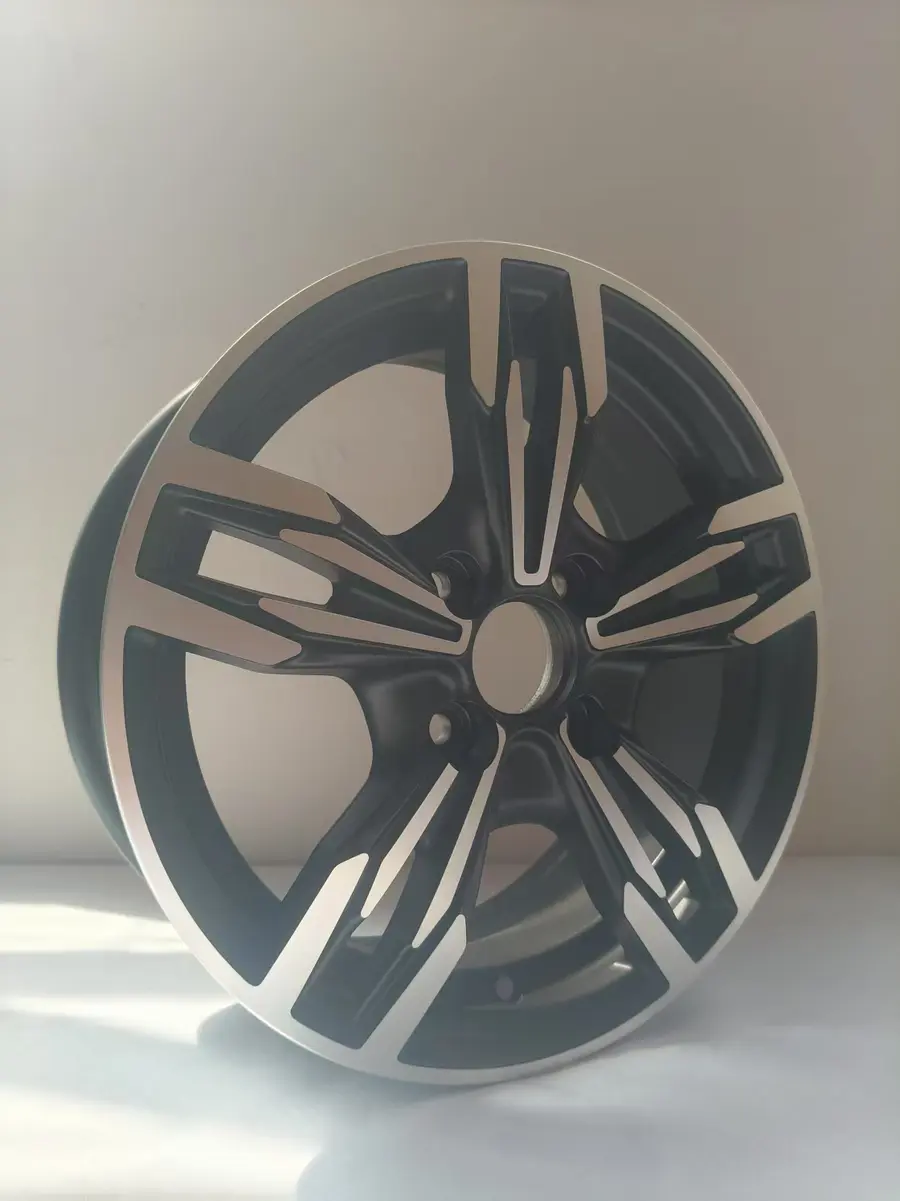

REW002 Cast Alloy Wheel
REW002 is a cast alloy wheel (rim) in 1 finish: Matte Black Machined Face. It is an aftermarket design. It comes in 14–15 inch: 2 sizes (14x5.5, 15x6), 3 bolt patterns (4x100, 4x114.3 and 5x100), offset ET 35 mm and center bore 57.1–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 14x5.5, 15x6
Bolt patterns (PCD): 4x100, 4x114.3, 5x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 14x5.5 | 35 | 4x100 | 67.1 | Cone seat | 30 | |
| 14x5.5 | 35 | 4x114.3 | 73.1 | Cone seat | 0 | |
| 14x5.5 | 35 | 5x100 | 57.1 | Ball seat | 50+ | |
| 15x6 | 35 | 4x100 | 67.1 | Cone seat | 45 | |
| 15x6 | 35 | 4x114.3 | 73.1 | Cone seat | 50+ | |
| 15x6 | 35 | 5x100 | 57.1 | Ball seat | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 14x5.5 is a 14 inch wheel with a 5.5 inch wide rim. The J after a width, as in 5.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. REW002 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 4x100 is 4 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1–73.1 mm for REW002. A bore larger than the hub needs centering rings.
