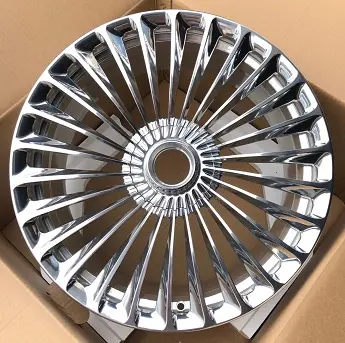

PL001 Forged Alloy Wheel in Polished + Brushed Rim
PL001 is a forged alloy wheel (rim) in Polished + Brushed Rim, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–21 inch: 10 sizes (17x7.5, 18x8, 18x8.5, 18x9, 19x8.5, 19x9.5 and more), 2 bolt patterns (5x112 and 5x120), offset ET 34–45 mm and center bore 59.5–66.6 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x7.5, 18x8, 18x8.5, 18x9, 19x8.5, 19x9.5, 20x8.5, 20x9.5, 21x9, 21x10
Bolt patterns (PCD): 5x112, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 17x7.5 | 38 | 5x112 | 66.6 | Mercedes-Benz | 12 | |||||
| 18x8 | 38 | 5x112 | 66.6 | Mercedes-Benz | 0 | |||||
| 18x8.5 | 36 | 5x112 | 66.6 | Mercedes-Benz | 4 | |||||
| 18x9 | 38 | 5x112 | 66.6 | Mercedes-Benz | 6 | |||||
| 18x9 | 42 | 5x112 | 66.6 | Mercedes-Benz | 0 | |||||
| 19x8.5 | 36 | 5x112 | 66.6 | Mercedes-Benz | 11 | |||||
| 19x9.5 | 43.5 | 5x112 | 66.6 | Mercedes-Benz | 10 | |||||
| 20x8.5 | 36 | 5x112 | 66.6 | Mercedes-Benz | 21 | |||||
| 20x8.5 | 38 | 5x120 | 59.5 | 0 | ||||||
| 20x9.5 | 43.5 | 5x112 | 66.6 | Mercedes-Benz | 19 | |||||
| 21x9 | 34 | 5x112 | 66.6 | Mercedes-Benz | 6 | |||||
| 21x10 | 45 | 5x112 | 66.6 | Mercedes-Benz | 6 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. PL001 comes in ET 34–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 59.5–66.6 mm for PL001. A bore larger than the hub needs centering rings.
