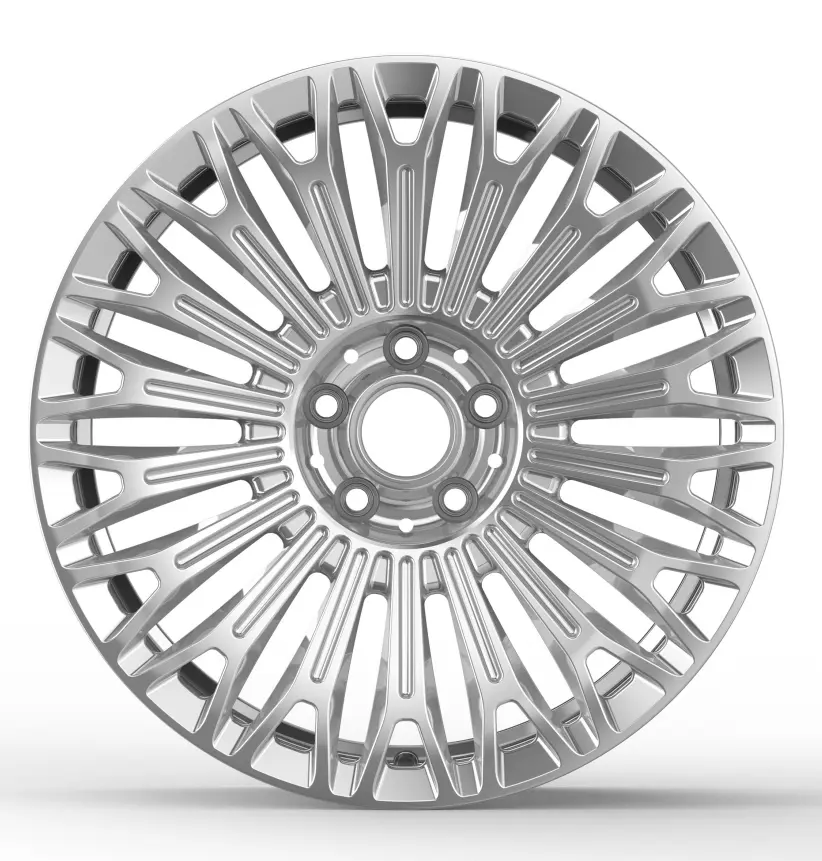

WD0616 Forged Alloy Wheel
WD0616 is a forged alloy wheel (rim) in 1 finish: Polished. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–21 inch: 7 sizes (18x8, 19x8.5, 19x9.5, 20x9, 20x10, 21x9 and more), 1 bolt pattern (5x112), offset ET 29–48 mm and center bore 66.45 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 18x8, 19x8.5, 19x9.5, 20x9, 20x10, 21x9, 21x10
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 18x8 | 29 | 5x112 | 66.45 | Mercedes-Benz | 16 | |
| 19x8.5 | 31.5 | 5x112 | 66.45 | Mercedes-Benz | 18 | |
| 19x9.5 | 43 | 5x112 | 66.45 | Mercedes-Benz | 19 | |
| 20x9 | 34 | 5x112 | 66.45 | Mercedes-Benz | 12 | |
| 20x10 | 48 | 5x112 | 66.45 | Mercedes-Benz | 12 | |
| 21x9 | 34 | 5x112 | 66.45 | Mercedes-Benz | 8 | |
| 21x10 | 48 | 5x112 | 66.45 | Mercedes-Benz | 8 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0616 comes in ET 29–48; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45 mm for WD0616. A bore larger than the hub needs centering rings.
