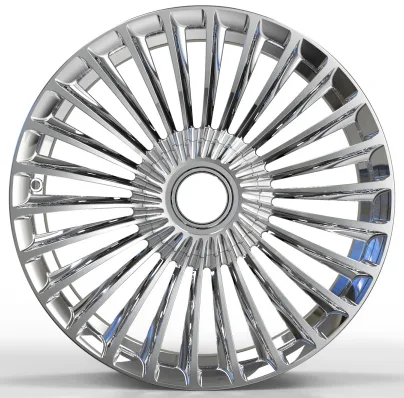

PL001 Forged Alloy Wheel
PL001 is a forged alloy wheel (rim) in 2 finishes: Polished and Polished + Brushed Rim. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–21 inch: 12 sizes (17x7.5, 18x7.5, 18x8, 18x8.5, 18x9, 19x8.5 and more), 3 bolt patterns (5x112, 5x120 and 5x114.3), offset ET 34–45 mm and center bore 59.5–67.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
Finish
Wheel sizes: 17x7.5, 18x7.5, 18x8, 18x8.5, 18x9, 19x8.5, 19x9.5, 20x8, 20x8.5, 20x9.5, 21x9, 21x10
Bolt patterns (PCD): 5x112, 5x120, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 17x7.5 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 950 | 9.7 | Mercedes-Benz | |||
| 17x7.5 | 38 | 5x120 | 67.1 | 15*32*60 | 950 | 9.9 | 1 | |||
| 17x7.5 | 38 | 5x120 | 66.9 | 15*32*60 | 950 | 9.9 | ||||
| 18x7.5 | 35 | 5x120 | 66.9 | 1 | ||||||
| 18x8 | 38 | 5x112 | 66.45 | 15*31*R14.1 | 950 | 10.8 | Mercedes-Benz | 6 | ||
| 18x8.5 | 36 | 5x112 | 66.45 | 15*31*R14.1L | 950 | 11.1 | Mercedes-Benz | |||
| 18x9 | 38 | 5x112 | 66.45 | 15*31*R14.1L | 950 | 11.5 | Mercedes-Benz | 6 | ||
| 19x8.5 | 36 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 11.9 | Mercedes-Benz | 14 | ||
| 19x8.5 | 38 | 5x114.3 | 67.1 | Cone seat | 15*32.5*60 | 950 | 11.9 | |||
| 19x8.5 | 38 | 5x120 | 66.9 | 15*32*60 | 950 | 11.9 | ||||
| 19x8.5 | 42 | 5x112 | 66.45 | 15*31*R14.1 | 950 | 11.6 | Mercedes-Benz | 1 | ||
| 19x9.5 | 43.5 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 12.5 | Mercedes-Benz | 12 | ||
| 20x8 | 38 | 5x120 | 59.5 | 1 | ||||||
| 20x8.5 | 36 | 5x112 | 66.45 | 15*31*R14.1L | 950 | 13.4 | Mercedes-Benz | 19 | ||
| 20x8.5 | 38 | 5x114.3 | 67.1 | 15*32*60 | 950 | 13.6 | 4 | |||
| 20x9.5 | 43.5 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 13.6 | Mercedes-Benz | 16 | ||
| 21x9 | 34 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 15.6 | Mercedes-Benz | |||
| 21x10 | 45 | 5x112 | 66.45 | 16*31*R14.1L | 950 | 16 | Mercedes-Benz |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. PL001 comes in ET 34–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 59.5–67.1 mm for PL001. A bore larger than the hub needs centering rings.
