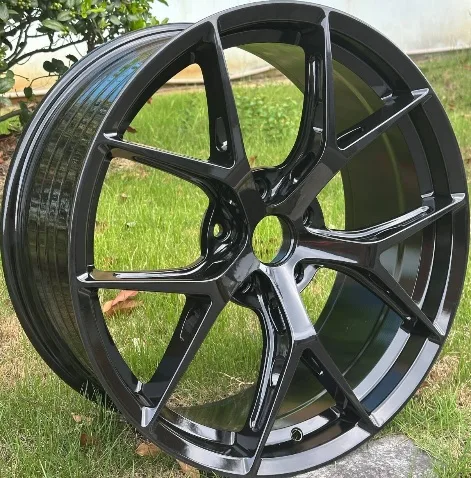

FBX193 Cast Alloy Wheel
FBX193 is a cast alloy wheel (rim) in 3 finishes: Hyper Black (Full Paint), Gloss Black (Full Paint) and Bronze (Full Paint). It is an aftermarket design. It comes in 18–20 inch: 4 sizes (18x8, 19x8.5, 20x8.5, 20x9.5), 2 bolt patterns (5x114.3 and 5x112), offset ET 35–43 mm and center bore 66.5–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
No photo for this finish yet; showing another finish of FBX193.
Finish
Wheel sizes: 18x8, 19x8.5, 20x8.5, 20x9.5
Bolt patterns (PCD): 5x114.3, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 18x8 | 35 | 5x114.3 | 73.1 | Cone seat | ||
| 19x8.5 | 35 | 5x112 | 66.5 | Ball seat | 3 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | Cone seat | ||
| 20x8.5 | 35 | 5x114.3 | 73.1 | Cone seat | 3 | |
| 20x8.5 | 36 | 5x112 | 66.5 | Ball seat | ||
| 20x9.5 | 40 | 5x114.3 | 73.1 | Cone seat | ||
| 20x9.5 | 43 | 5x112 | 66.5 | Ball seat | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FBX193 comes in ET 35–43; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–73.1 mm for FBX193. A bore larger than the hub needs centering rings.
