WD507 Cast Alloy Wheel

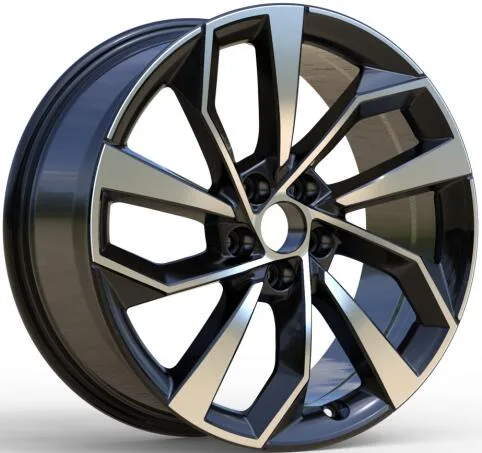

WD507 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19 inch: 1 size (19x8), 1 bolt pattern (5x112), offset ET 39 mm and center bore 66.5 mm. Listed for Audi. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Audi.
Finish
Wheel sizes: 19x8
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 19x8 | 39 | 5x112 | 66.5 | Ball seat | Audi | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8 is a 19 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD507 comes in ET 39; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5 mm for WD507. A bore larger than the hub needs centering rings.
