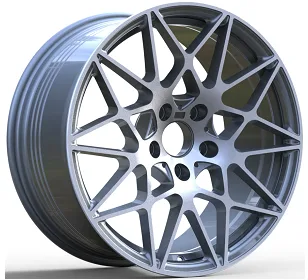

WD498 Cast Alloy Wheel
WD498 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–19 inch: 4 sizes (18x8, 18x9, 19x8.5, 19x9.5), 2 bolt patterns (5x112 and 5x120), offset ET 25–40 mm and center bore 66.5–72.6 mm. Listed for BMW. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for BMW.
Finish
Wheel sizes: 18x8, 18x9, 19x8.5, 19x9.5
Bolt patterns (PCD): 5x120, 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x8 | 30 | 5x120 | 72.6 | Cone seat | BMW | 1 | |
| 18x8 | 35 | 5x112 | 66.5 | Cone seat | BMW | 50+ | |
| 18x9 | 35 | 5x112 | 66.5 | Cone seat | BMW | 29 | |
| 18x9 | 35 | 5x120 | 72.6 | Cone seat | BMW | 0 | |
| 19x8.5 | 25 | 5x112 | 66.5 | Cone seat | BMW | 50+ | |
| 19x8.5 | 35 | 5x120 | 72.6 | Cone seat | BMW | 27 | |
| 19x9.5 | 35 | 5x112 | 66.5 | Cone seat | BMW | 50+ | |
| 19x9.5 | 40 | 5x120 | 72.6 | Cone seat | BMW | 22 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD498 comes in ET 25–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.5–72.6 mm for WD498. A bore larger than the hub needs centering rings.
