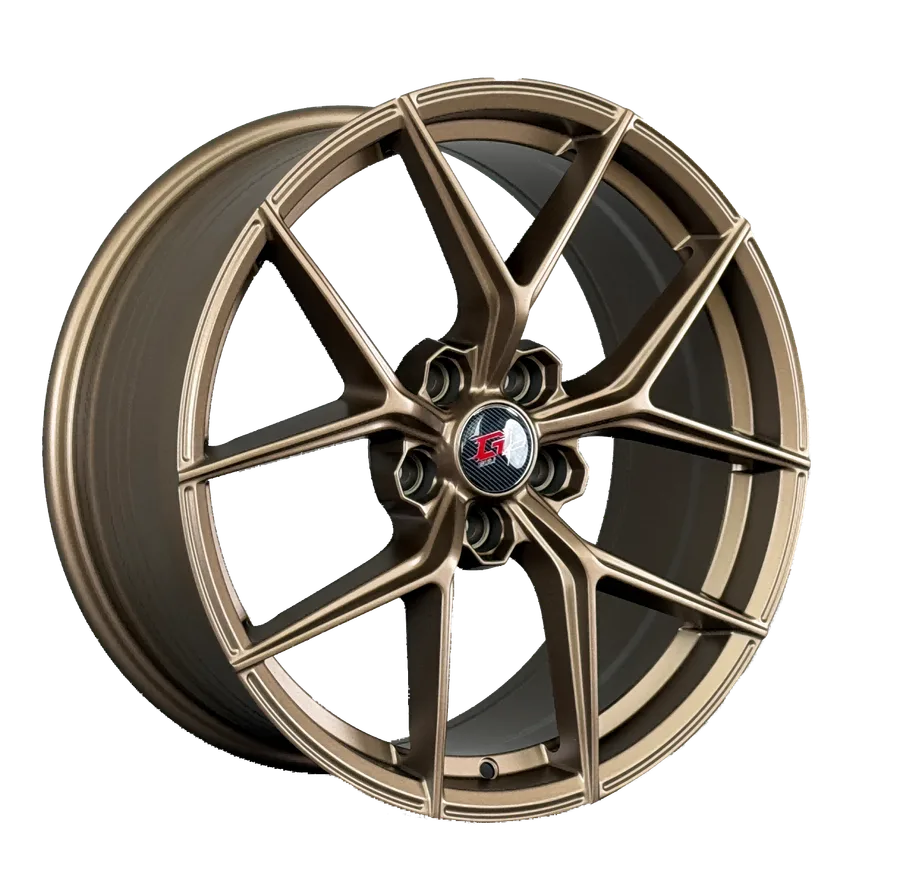

WD449 Cast Alloy Wheel in Matte Bronze (Full Paint)
WD449 is a cast alloy wheel (rim) in Matte Bronze (Full Paint), one of 3 finishes. It is an aftermarket design. It comes in 17–19 inch: 3 sizes (17x7.5, 18x8, 19x8.5), 2 bolt patterns (5x112 and 5x114.3), offset ET 35 mm and center bore 66.45–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x7.5, 18x8, 19x8.5
Bolt patterns (PCD): 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 17x7.5 | 35 | 5x112 | 66.45 | 50+ | |
| 17x7.5 | 35 | 5x114.3 | 73.1 | 50+ | |
| 18x8 | 35 | 5x112 | 66.45 | 23 | |
| 18x8 | 35 | 5x114.3 | 73.1 | 1 | |
| 19x8.5 | 35 | 5x112 | 66.45 | 16 | |
| 19x8.5 | 35 | 5x114.3 | 73.1 | 43 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7.5 is a 17 inch wheel with a 7.5 inch wide rim. The J after a width, as in 7.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD449 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45–73.1 mm for WD449. A bore larger than the hub needs centering rings.
