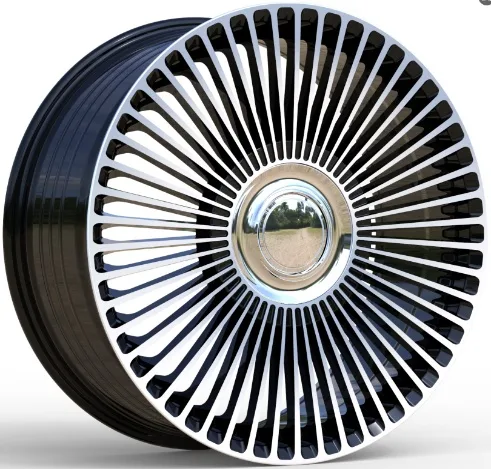

WD442 Cast Alloy Wheel
WD442 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Gloss Black (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22 inch: 1 size (22x9.5), 1 bolt pattern (5x120), offset ET 35–40 mm and center bore 66.1–72.6 mm. Listed for AITO and Land Rover. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
No photo for this finish yet; showing another finish of WD442.
Finish
Wheel sizes: 22x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 22x9.5 | 35 | 5x120 | 66.1 | Cone seat | AITO | 25 | |
| 22x9.5 | 40 | 5x120 | 72.6 | Flat seat | Land Rover | 30 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x9.5 is a 22 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD442 comes in ET 35–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.1–72.6 mm for WD442. A bore larger than the hub needs centering rings.
