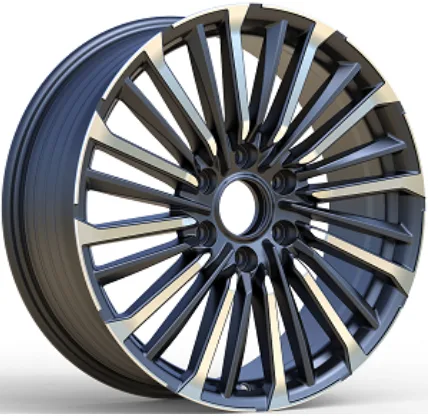

WD422 Cast Alloy Wheel
WD422 is a cast alloy wheel (rim) in 2 finishes: Gloss Black Machined Face and Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 2 sizes (20x8, 22x8.5), 1 bolt pattern (6x139.7), offset ET 35–45 mm and center bore 78.1 mm. Listed for Nissan (Patrol). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Nissan.
No photo for this finish yet; showing another finish of WD422.
Finish
Wheel sizes: 20x8, 22x8.5
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x8 | 35 | 6x139.7 | 78.1 | Flat seat | Nissan Patrol | 33 | |
| 22x8.5 | 45 | 6x139.7 | 78.1 | Flat seat | Nissan Patrol | 9 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8 is a 20 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD422 comes in ET 35–45; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 78.1 mm for WD422. A bore larger than the hub needs centering rings.
Fits the same bolt pattern and size
Same PCD, wheel diameter and a compatible center bore.
Similar finish and range
Same collection, with a matching finish or vehicle brand.
Similar design
Wheels that look alike, from the same collection. Check the bolt pattern before you order.
