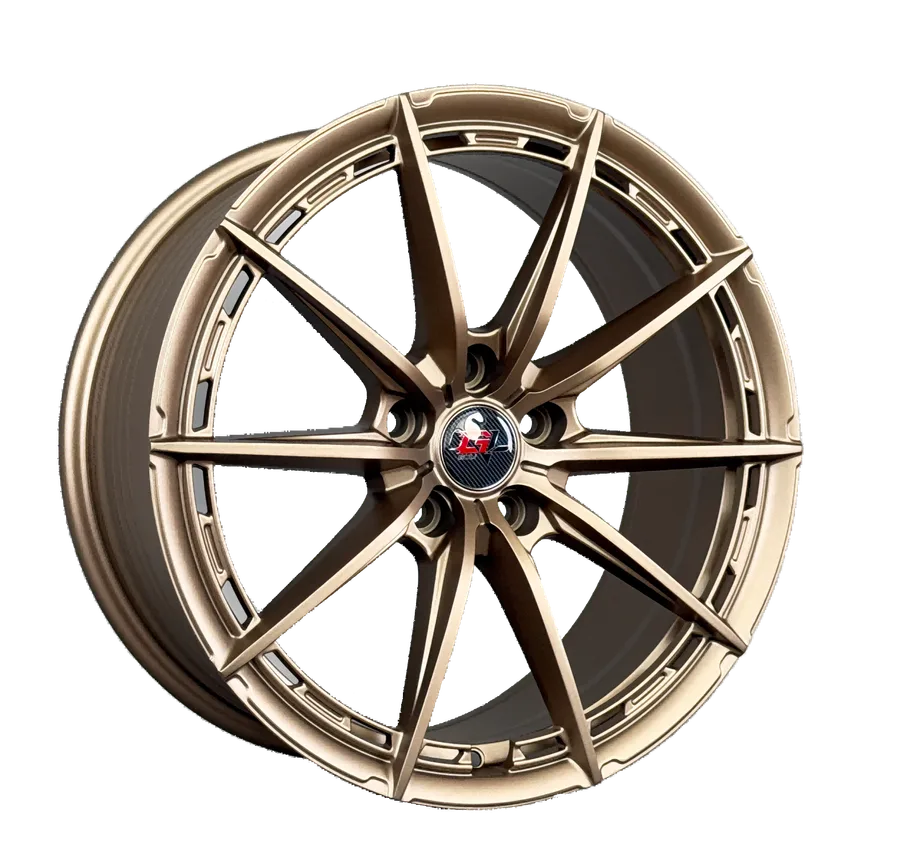

WD414 Cast Alloy Wheel in Matte Bronze (Full Paint)
WD414 is a cast alloy wheel (rim) in Matte Bronze (Full Paint), one of 3 finishes. It is an aftermarket design. It comes in 18 inch: 1 size (18x8), 3 bolt patterns (5x108, 5x112 and 5x114.3), offset ET 38 mm and center bore 56.6–73.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x8
Bolt patterns (PCD): 5x108, 5x112, 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 18x8 | 38 | 5x108 | 56.6 | 38 | |
| 18x8 | 38 | 5x112 | 66.45 | 20 | |
| 18x8 | 38 | 5x114.3 | 73.1 | 40 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD414 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 56.6–73.1 mm for WD414. A bore larger than the hub needs centering rings.
