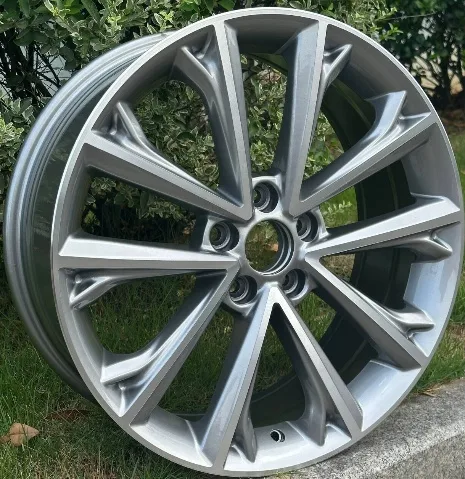

WD277 Cast Alloy Wheel
WD277 is a cast alloy wheel (rim) in 1 finish: Gunmetal Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x7), 1 bolt pattern (5x108), offset ET 38 mm and center bore 60.1 mm. Listed for Chery. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x7
Bolt patterns (PCD): 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x7 | 38 | 5x108 | 60.1 | Ball seat | Chery | 50+ |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x7 is a 18 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD277 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1 mm for WD277. A bore larger than the hub needs centering rings.
