WD322 Cast Alloy Wheel

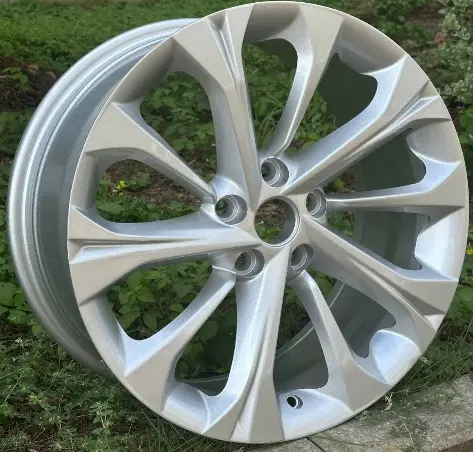

WD322 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x7), 1 bolt pattern (5x108), offset ET 38 mm and center bore 57.1 mm. Listed for Zhonghua (V5). Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 17x7
Bolt patterns (PCD): 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 17x7 | 38 | 5x108 | 57.1 | Cone seat | Zhonghua V5 | 27 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x7 is a 17 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD322 comes in ET 38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 57.1 mm for WD322. A bore larger than the hub needs centering rings.
