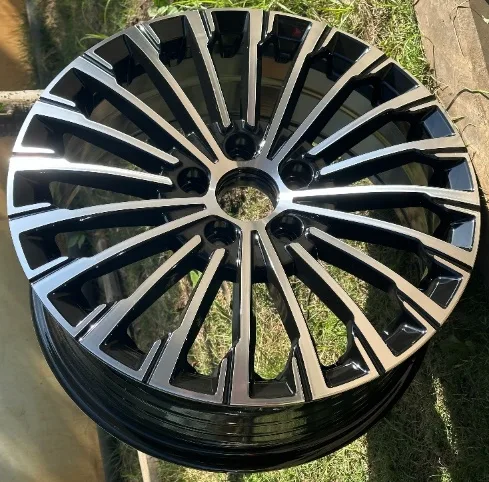

WD240 Cast Alloy Wheel in Gloss Black Machined Face
WD240 is a cast alloy wheel (rim) in Gloss Black Machined Face, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18 inch: 1 size (18x7), 1 bolt pattern (5x120), offset ET 44.5 mm and center bore 64.1 mm. Listed for Denza. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 18x7
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 18x7 | 44.5 | 5x120 | 64.1 | Cone seat | Denza |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x7 is a 18 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD240 comes in ET 44.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD240. A bore larger than the hub needs centering rings.
