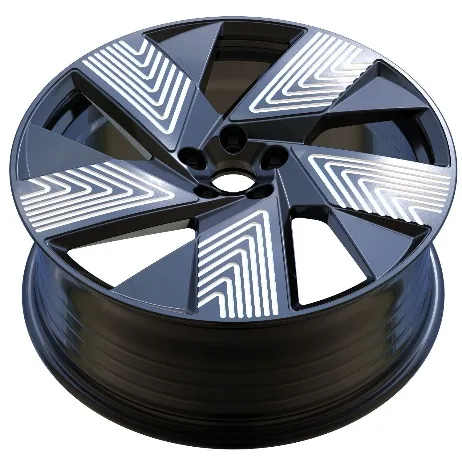

WD225 Cast Alloy Wheel in Gloss Black + Milling
WD225 is a cast alloy wheel (rim) in Gloss Black + Milling, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20 inch: 2 sizes (20x8, 20x9), 1 bolt pattern (5x108), offset ET 50.5–58.5 mm and center bore 63.4 mm. Listed for Volvo. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x8, 20x9
Bolt patterns (PCD): 5x108
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 20x8 | 50.5 | 5x108 | 63.4 | Cone seat | Volvo | ||
| 20x9 | 58.5 | 5x108 | 63.4 | Cone seat | Volvo | 25 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8 is a 20 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD225 comes in ET 50.5–58.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x108 is 5 bolts on a 108 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 63.4 mm for WD225. A bore larger than the hub needs centering rings.
