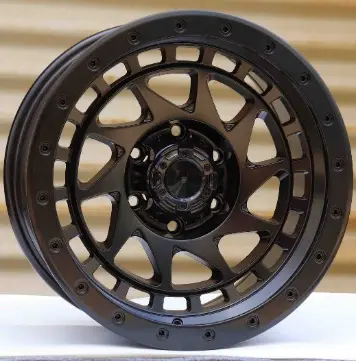

FBX106 Cast Alloy Wheel
FBX106 is a cast alloy wheel (rim) in 1 finish: Matte Black + Silver Rivets. It is a 4x4 / off-road wheel. It comes in 16 inch: 1 size (16x8.5), 1 bolt pattern (6x139.7), offset ET 0 mm and center bore 110.1 mm. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 16x8.5
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x8.5 | 0 | 6x139.7 | 110.1 | Cone seat | Anti-slip groove | 32 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x8.5 is a 16 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. FBX106 comes in ET 0; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 110.1 mm for FBX106. A bore larger than the hub needs centering rings.
