WD178 Cast Alloy Wheel in Matte Black (Full Paint)

Name: WD178 Alloy Wheel
Brand: Sky Flux
SKU: WD178

WD178 is a cast alloy wheel (rim) in Matte Black (Full Paint), one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17–18 inch: 2 sizes (17x9, 18x9), 4 bolt patterns (5x114.3, 5x127, 6x139.7 and 6x114.3), offset ET -10–0 mm and center bore 66.1–110.1 mm. Feature: anti-slip groove. Not sure what PCD, ET and CB mean? Read how to choose wheels.

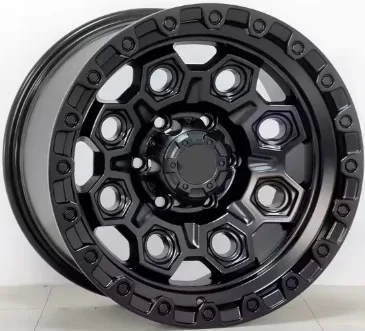

WD178 alloy wheel rim – Matte Black (Full Paint)

WD178 alloy wheel – Gloss Black Machined Face, photo 2

WD178 alloy wheel – Matte Black (Full Paint), photo 3

Finish

Gloss Black Machined Face Matte Black (Full Paint)Gloss Black Machined Face + Red Clear Coat

Wheel sizes: 17x9, 18x9

Bolt patterns (PCD): 5x127, 5x114.3, 6x114.3, 6x139.7

Sizes and specifications of WD178 in Matte Black (Full Paint)
Size (D x J)	Offset (ET)	Bolt pattern (PCD)	Center bore (CB)	Hole type	Fits	Stock
17x9	-10	5x127	71.5	Cone seat	Anti-slip groove	1
17x9	0	5x114.3	73.1	Cone seat	Anti-slip groove	2
17x9	0	6x114.3	66.1	Cone seat	Anti-slip groove	50+
17x9	0	6x139.7	110.1	Cone seat	Anti-slip groove	50+
18x9	-10	5x127	71.5	Cone seat	Anti-slip groove	50+
18x9	0	5x114.3	73.1	Cone seat	Anti-slip groove	1
18x9	0	6x139.7	110.1	Cone seat	Anti-slip groove	50+

What these numbers mean

Size (D x J): Diameter in inches, then rim width in inches: 17x9 is a 17 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
Offset (ET): The distance in mm from the wheel's centerline to its mounting face. WD178 comes in ET -10–0; a lower ET sits the wheel further out.
Bolt pattern (PCD): The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
Center bore (CB): The central hole that sits over the vehicle's hub: 66.1–110.1 mm for WD178. A bore larger than the hub needs centering rings.
